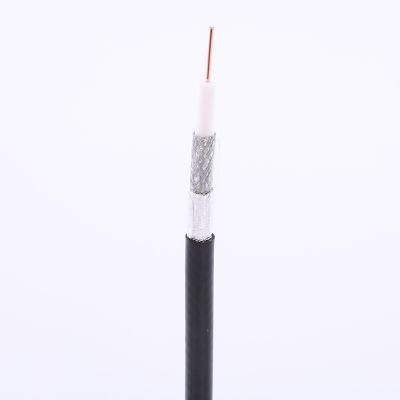

CCTV Camera Television Use Siamese with Power Wire Rg59 Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：coaxial cable
- Wire Core Material：CCS
- Certification：CE, ISO, RoHS
- Model：Coaxial
- Brand：OEM
- Conductor Size：1.02
- Braiding：32,48,64,96,112,128,144
- Transport Package：200m,300m,305m
- Specification：0.8mm Conductor
- Trademark：FUU
- Origin：China
- HS Code：8544200000
- Production Capacity：4000km,Month
Description
Material Specification Conductor BC/CCS 0.81mm(20AWG,0.032'') Dielectric FPE 3.66mm(0.144'') 1st Shield
Al Foil100%, Overlap>2mm 2nd Shield BC or Al Braiding 40%-95% 53% 3rd Shield
Al Foil- 100%, Overlap>2mm 4th Shield
BC or Al Braiding- - 40%
Jacket PVC/PEOuter Diameter 6.1mm(0.24'') 6.1mm(0.24'') 6.73mm(0.265'') Nominal Thickness 0.81mm(0.032'') 0.76mm(0.030'') 0.86mm(0.034'') Messenger
Steel1.30mm
Techonlogy Data

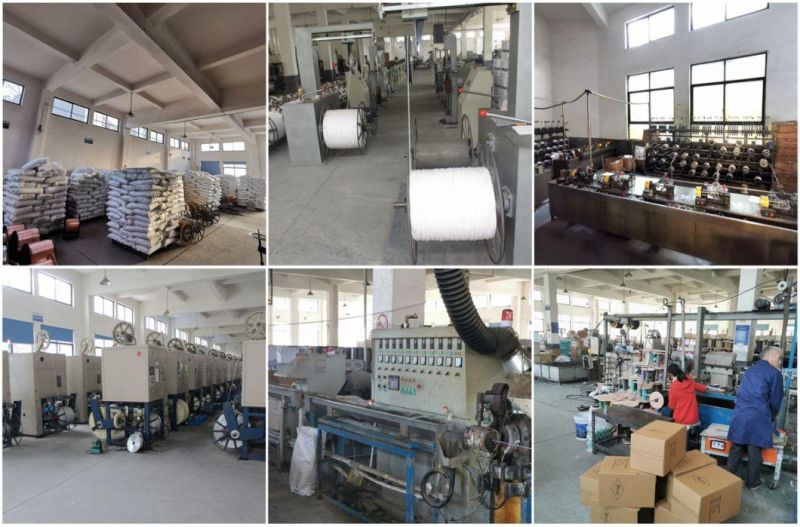

Factory photos and production process
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
Al Foil
Al Foil
BC or Al Braiding
Jacket PVC/PE
Steel
Techonlogy Data
| TECHNOLOGY DATA | |
|---|---|
| Characteristic Impedance | 75±3Ohm |
| Capacitance | 50±1pF/m |
| Velocity | >85% |
| Shielding Effectiveness | >100db |
| Insulation resistance | 1000M(20ºC) |
| Frequence (at 20ºC) | Max.Attenuation |
| 5MHz | 2.82dB/100m |
| 55MHz | 6.73dB/100m |
| 211MHz | 12.47dB/100m |
| 350MHz | 15.75dB/100m |
| 450MHz | 17.72dB/100m |
| 500MHz | 18.70dB/100m |
| 550MHz | 19.52dB/100m |
| 750MHz | 22.87dB/100m |
| 1000MHz | 26.64dB/100m |
| 1450MHz | 32.41dB/100m |
| 1750MHz | 36.04dB/100m |
