• Model NO.：Concentric Cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, CE
• Model：16mm2 Concentric Cable
• Brand：Yifang Cable
• Jacket Color：Black
• Standard：Sans 1507
• Country of Origin：China
• Jacket Material：PVC
• Transport Package：Drum
• Specification：16mm2
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：500, 000 Meters Per Month

Basic Info.

Model NO. Concentric Cable Wire Core Material Aluminum Certification ISO, CCC, CE Model 16mm2 Concentric Cable Brand Yifang Cable Jacket Color Black Standard Sans 1507 Country of Origin China Jacket Material PVC Transport Package Drum Specification 16mm2 Trademark Yifang Origin China HS Code 8544492100 Production Capacity 500, 000 Meters Per Month

Product Description

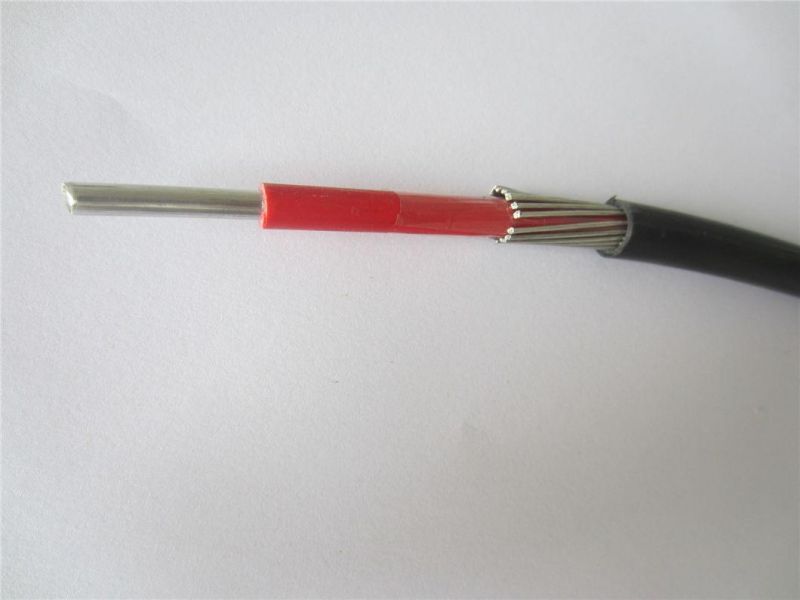

Service Drop Solidal Aluminum 16mm2 Concentric Cable



1 Applications

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.

This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 70 ºC and its voltage of service for all the applications is 600 V.

Standards

 IEC  BS and so on

Voltage:

600/1000V

Concentric Cable Construction

Conductor

Plain copper or aluminum conductors, IEC 60228, solid or stranded versions, conductor types

10-16 mm² round, solid conductors .

10-25 mm², stranded conductor.

35-240 mm², sector shaped conductor, stranded

Insulation

PVC(Polyvinyl Chloride )

Inner Sheath

PVC(Polyvinyl Chloride)

Concentric Conductor

 Aluminum wires

Sheath

PVC(Polyvinyl Chloride)

Minimum Bending Radius

Single Core: 15* overall diameter

Multi Core: 12* overall diameter



ITEM	SPECIFICATION (PARTICULARS	UNIT	Data
1	Standard		IEC 60502/228/1089/ES 109-7
2	Voltage	kV	0.6/1
3	Phase Conductor material		Hard drawn Aluminium conductor
4	Number of core	Nos	1
5	Number of strands	Nos	1(Solidal)
6	Conductor Size	mm2	16
7	Diameter of wire	mm	4.35
8	D.C Resistant at 20°C	Ω/KM	1.91
10	Insulation Resistance at  20°C (Min)	MΩ/KM	5
11	Current Carrying Capacity in Air at 25°C	A	60
12	Insulation Material		PVC
13	Insulation Thickness	mm	1.0
14	Sheath Material		Black PVC
15	Sheath Thickness	mm	1.2
16	Earth wire
16.1	Material		Aluiminum
16.2	Number & Dia of wire	Nos/mm	20/1.0
16.3	Overall Diameter of cable	mm	11.95
17	Core Identification		Red
