• Model NO.：Electrical Cable Wire
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：500MCM
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

Voltage Rating 300/500V 450/750V 600/1000VTemperature Range -10°C to 70°CCore colour Black, blue, brown, green/yellow, grey, orange, pink, purple, red, white, yellow



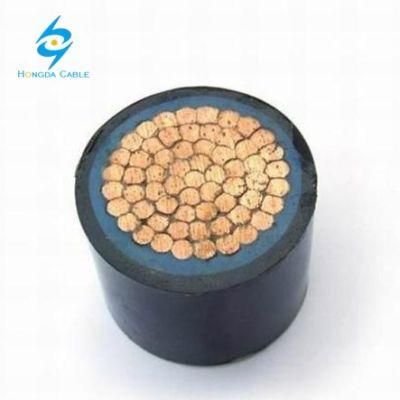

CONSTRUCTION

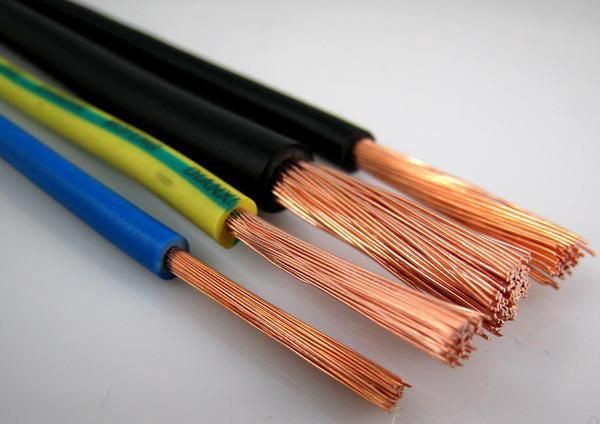

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 5.

Insulation: PVC compound


COLOUR CODE

Insulation colour as per bs7671



with earth conductor

without earth conductor

2Cores

-

Brown,Blue

3Cores

Yellow/Green,Brown,Blue

Brown,Gray,Black

4Cores

Yellow/Green,Brown,Gray,Black

Brown,Gray,Black,Blue

5Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray,Black,Blue,Black

above 5 Cores

Yellow/Green,Black Numbered

Black Numbered

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 6 x Overall Diameter

Spes of flexible cable:

CABLE SIZENOMINAL
STRANDING
No.x DIAMETERAPPROX.
OVERALL
DIAMETERCURRENT
RATING
Note 1VOLT DROPAPPROX. CABLE
WEIGHT
MASS PER
100M COIL(mm2) (mm)(A)(MV/A/M)(kg)    (note 1)(note 1)0.515w x 0.202.483930.990.7522w x 0.202.686621.071.029w x 0.202.8610441.531.5028w x 0.253.1216292.002.5046w x 0.253.5427182.944.052w x 0.304.4837114.726.084w x 0.305.20477.307.3010.0140w x 0.306.12654.4011.3416.0200w x 0.309.50872.8022.025.0312w x 0.3012.501141.7530.035.0440w x 0.3012.901411.2540.0

Note 1: Based on a max ambient temperature of 30°C and a max conductor temperature of 70°C

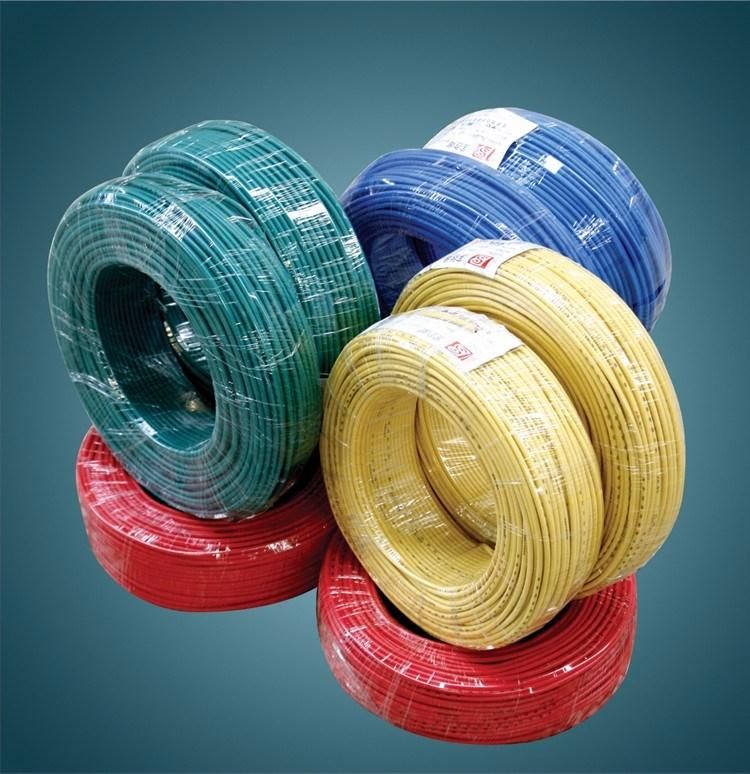

Packing shipping
