• Model NO.：YJLV
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Yjlv
• Brand：Hongda
• Transport Package：in Drum or in Coil
• Specification：2,0awg
• Trademark：OEM
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000 M Per Day

Basic Info.

Model NO. YJLV Wire Core Material Aluminum Certification ISO, CCC Model Yjlv Brand Hongda Transport Package in Drum or in Coil Specification 2/0awg Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per Day

Product Description

Applicantion:
The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).
The factory can also manufacture the products that are based on British Standard(BS) and other standards.
In addition,under the requirement of customers we can design and manufacture the products that have special performance.
The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.

Specific Property for Using
1.The long-time permissible working temperature of cable conductive core is not more than 70ºC., lower -40ºC
2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 165ºC.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0ºC.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.Light weight,good bending property and easy installation and maintenance

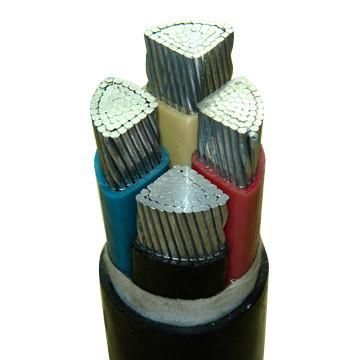

Sample free! XLPE Insulated PVC Sheathed Power Cable YJV,YJLV

Type	Name
VV  VLV	Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable
VV22  VLV22	Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
VV23 VLV23	Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
VV32 VLV32	Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable
VV33  VLV33	Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable
VV42  VLV42	Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PVC Sheathed Power Cable
VV43   VLV43	Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PE Sheathed Power Cable
