• Model NO.：Ethernet Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL,CPR

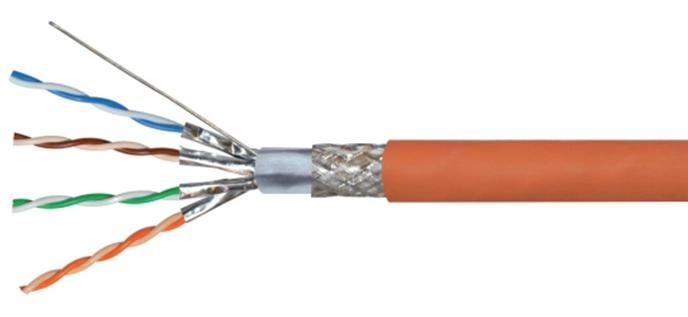

• Model：SFTP CAT6A Ethernet Cable
• Brand：Risun or OEM
• Insulation：HDPE
• Conductor：23AWG
• Drain Wire：Tc
• Shield：Polyester Tape,Al Foil
• Transport Package：305m,Wooden Drum
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Ethernet Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model SFTP CAT6A Ethernet Cable Brand Risun or OEM Insulation HDPE Conductor 23AWG Drain Wire Tc Shield Polyester Tape/Al Foil Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

SPECIFICATIONS

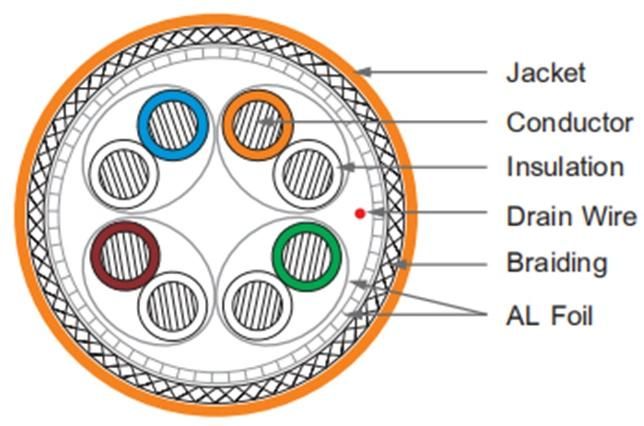

construction:

conductor	23AWG solid copper
insulation	HDPE 1.04±0.02mm
Cable	8 insulated wires formed into 4 pairs. Each pair is individually screened with an aluminised polyester tape. (The aluminium side of the tape aces outwards and is in continuous contact with the tinned copper drain wire).
Screen	An aluminised polyester tape screen applied with a 15% minimum overlap (The aluminium side is in continuous contact with the tinned copper drain wire.)
sheath	7.1±0.1mm pvc
cores/pairs	8/4

Electrical properties at 20ºC:

Nom. mutual capacitance	<=5.6 nF/100m (@1kHz)
Pair to ground capacitance unbalance	<=1600 pF/1Km
Nominal velocity of propagation	74%
Max. delay skew	45 ns/100m
Max. conductor DC resistance	95 Ω/km (@ 20 ºC)
Max. conductor resistance unbalance	2% (@ 20 ºC)
Min. insulation resistance	5000 MΩ·m
Test voltage (d.c. for 1 minute) Conductor/Conductor	1000V
Max. operating voltage	300V

Mechanical Characteristics Temperature Range:

Operation	-20°C to + 60°C
Installation	0°C to +50°C
Storage	-20°C to + 70°C

Packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

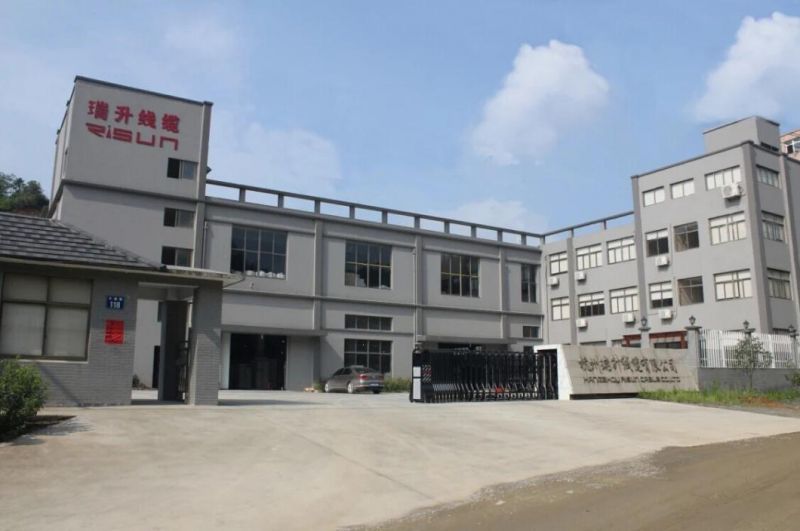

company profile

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.


process of production:
Welcome to RISUN,we will be happy to serve you!
