• Wire Core Material：Bare Copper Wire
• Certification：CE, RoHS, CCC, UL, CPR
• Model：2,4,6,8,10,12,14,16,18,20 Cores X0.22
• Brand：Exactcables
• Cable Core：2,4,6,8,10,12,14,16,18,20cores
• Shield：Al,Foil
• Drain Wire：7*0.2mm
• Jacket：PVC
• Specification：2,4,6,8,10,12,14,16,18,20 cores
• Trademark：ExactCables
• Origin：Ningbo
• Production Capacity：5000000000

Basic Info.

Wire Core Material Bare Copper Wire Certification CE, RoHS, CCC, UL, CPR Model 2/4/6/8/10/12/14/16/18/20 Cores X0.22 Brand Exactcables Cable Core 2/4/6/8/10/12/14/16/18/20cores Shield Al/Foil Drain Wire 7*0.2mm Jacket PVC Specification 2/4/6/8/10/12/14/16/18/20 cores Trademark ExactCables Origin Ningbo Production Capacity 5000000000

Product Description

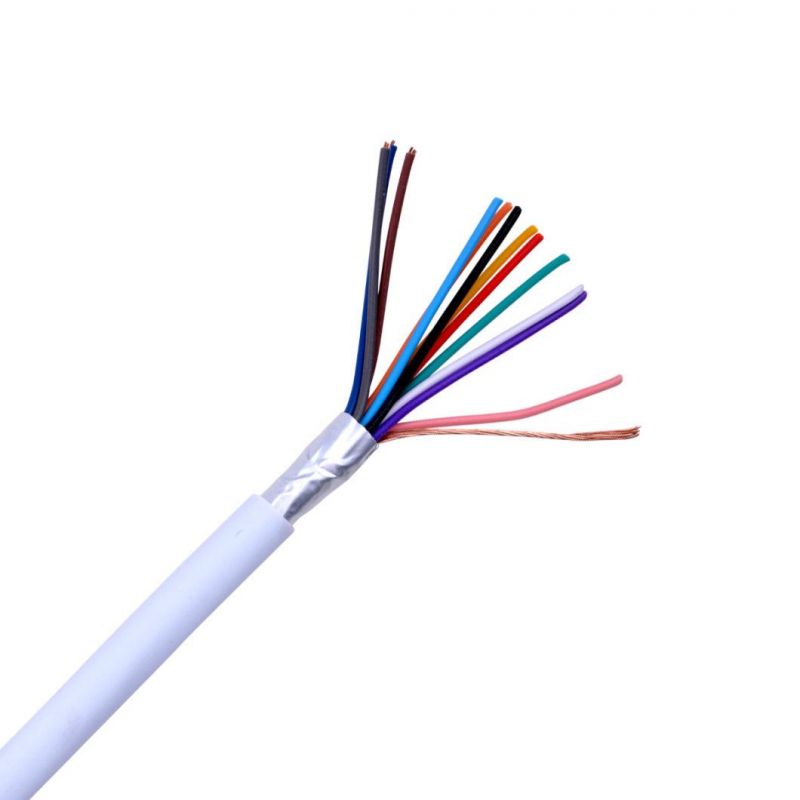

Unshielded or Shielded CCA/Tinned Copper/Copper/TCCA Stranded or Solid CPR Alarm Security Cable

PRODUCT DESCRIPTION:
Multi-roots lay-up bare copper(tinned copper)conductor
PVC insulation
Multi-cores lay-up
Rip cord
Flame retardant PVC or non-migration PVC or low-smoke POE jacket

ELECTRICALCHARACTERISTICS
Voltage Test:1500Vcc/min
Minimum insulation resistance at 20ºC:1500MΩ.km
Mutual capacity of the pairs:<57.5nF/km

APPLICATlON
For internal wiring of electronic and electrical equipment.

Part N0.	Product Type	Cores	Conductor No.(mm)	Insulation Nom.ThickMin(mm)	Jacket Nom.Dia(mm)	Jacket Nom. Thick Min (mm)
ECAC043	Security cable	4	7/0.18	0.16	3.8	0.50
ECAC044	Security cable	6	7/0.18	0.16	4.3	0.65
ECAC045	Security cable	8	7/0.18	0.16	4.3	0.65
ECAC046	Security cable	4	14/0.18	0.16	4.7	0.65
ECAC047	Security cable	6	14/0.18	0.16	5.7	0.75
ECAC048	Security cable	8	14/0.18	0.16	5.7	0.75

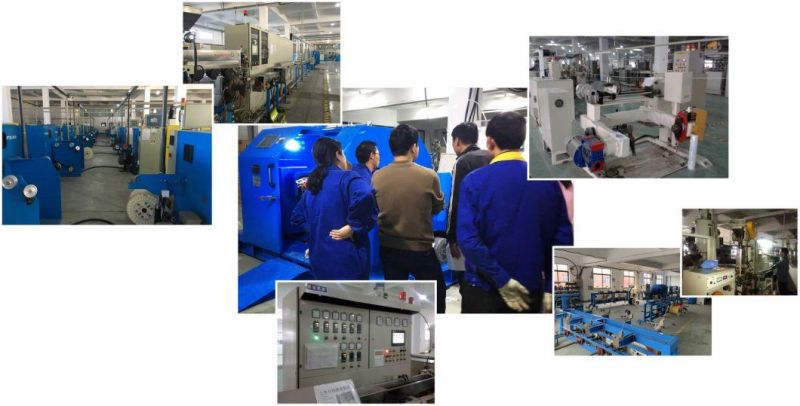

PRODUCTION EQUIPMENT





QUALITY POLICY

Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following:

• Maintain the ISO 9001 Quality Management System
• Continual review and improvement of the effectiveness of the Quality Management System
• Provide all necessary resources to manufacture quality cable
• Create a safe and technologically advanced working environment
• Respect for the environment in which we operate
• Training and communication to keep employees informed and involved

Every employee has the responsibility to ensure that these requirements are met.
  COMPANY INFOMATION
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industr y in China. We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.

Our factory is located in zhejiang Ningbo which is a beautiful port city.We have very advanced testing machines,including Agilent and HP analyzer.
We carefully test cables under ISO9001-2000 quality management before shipping to the customers.And our quality is always reliable.

Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
