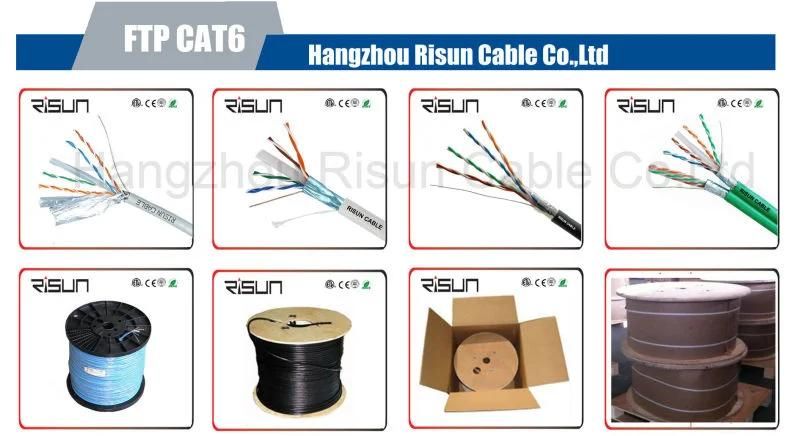

High Quality FTP CAT6 Cable 23AWG CCA LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,LSZH,PE
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid, Strand

Base Info

  • Model NO.：FTP CAT6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：OEM or Risun
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa



Electrical Properties:

Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%



Technical Performance:

    Frequency          Attenuation         RL    Next        PS Next         (MHz)         (≤dB/100M)        (≥dB)     (≥dB)         (≥dB)            4               3.8         23.0    66.3          63.3           10               6.0         25.0    60.3          57.3           16               7.6         25.0    57.2          54.2           20               8.5         25.0    55.8          52.8         31.2              10.7         23.6    52.9          49.9         62.5              15.4         21.5    48.4          45.4         100              19.8         20.1    45.3          42.3         200              29.0         18.0    40.8          37.8         250              32.8         17.3    39.3          36.3


High Quality FTP CAT6 Cable 23AWG CCA LAN Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.


High Quality FTP CAT6 Cable 23AWG CCA LAN Cable
High Quality FTP CAT6 Cable 23AWG CCA LAN Cable
