4pr 24AWG FTP Cat5e LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：FTP Cat5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Model：UTP Cat5e
  • Brand：Risun or OEM
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa

Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMCapacitance ≤5.6 nF/100mImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%

Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (dB/100m)       (dB)     (dB)          (dB)           4               4.1        23.0    56.3          53.3           8               5.8        24.5    51.8          48.8         10               6.5        25.0    50.3          47.3         16               8.2        25.0    47.2          44.2         20               9.3        25.0    45.8          42.8         25              10.4        24.3    44.3          41.3       31.25              11.7        23.6    42.9          39.9        62.5              17.0        21.5    38.4          35.4        100              22.0        20.1    35.3          32.3

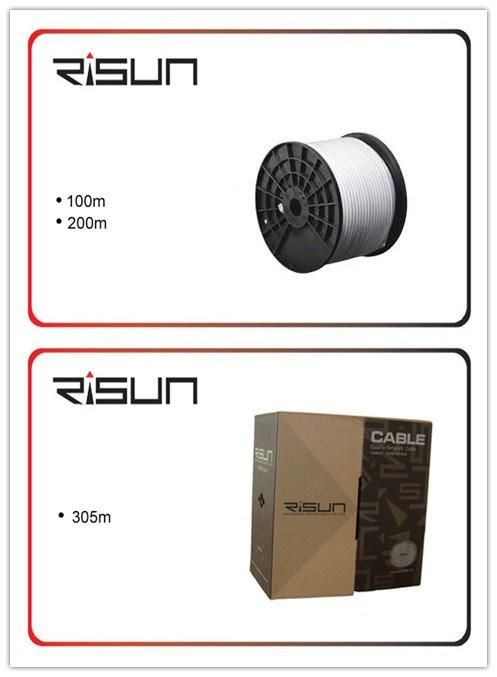

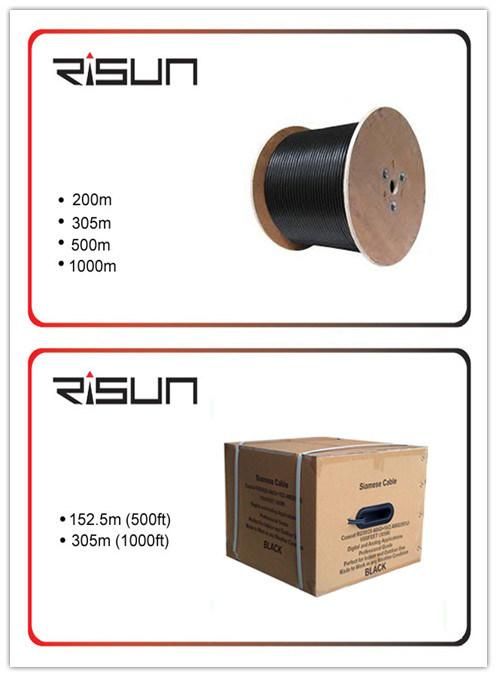

Packing


4pr 24AWG FTP Cat5e LAN Cable
4pr 24AWG FTP Cat5e LAN Cable
RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.




4pr 24AWG FTP Cat5e LAN Cable


4pr 24AWG FTP Cat5e LAN Cable
