Indoor Twisted Pair Dual UTP Cat5e Cable LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,LSZH,PE
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Solid, Strand

Base Info

  • Model NO.：UTP Cat5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Brand：Risun or OEM
  • Transport Package：305m,Pull Box, 2 Pull Box,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10MPa


Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤2%Insulation Resistance≥5000 MΩ·KMCapacitance≤5.6 nF/100mImpedance100 ± 15 ohmSpark Test2000VVelocity of Propagation69%


Technical Performance:

Frequency         Attenuation         RL    Next        PS Next    (MHz)          (≤dB/100M)        (≥dB)    (≥dB)         (≥dB)       4               4.1        23.0    56.3          53.3       8               5.8        24.5    51.8          48.8      10               6.5        25.0    50.3          47.3      16               8.2        25.0    47.2          44.2      20               9.3        25.0    45.8          42.8      25              10.4        24.3    44.3          41.3   31.25              11.7        23.6    42.9          39.9     62.5              17.0        21.5    38.4          35.4     100              22.0        20.1    35.3          32.3

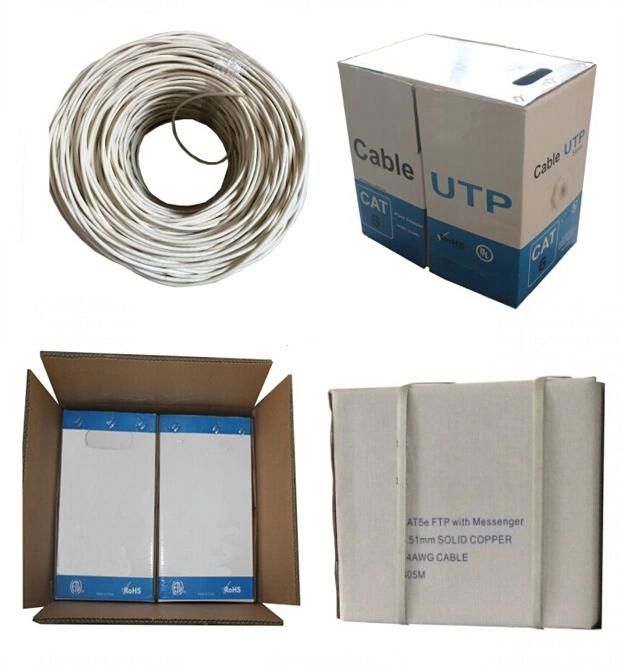

Packing:
Indoor Twisted Pair Dual UTP Cat5e Cable LAN Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.


Indoor Twisted Pair Dual UTP Cat5e Cable LAN Cable
Indoor Twisted Pair Dual UTP Cat5e Cable LAN Cable
