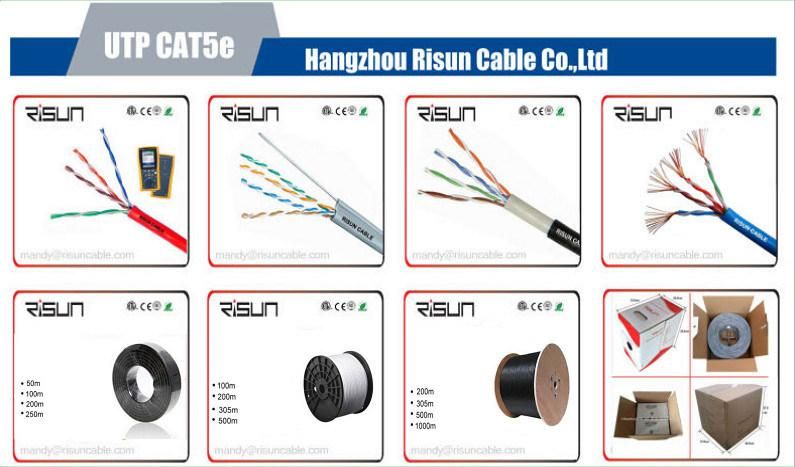

High Performance Network UTP Cat5e Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：LSZH
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid, Strand

Base Info

  • Model NO.：UTP Cat5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Model：UTP Cat5e
  • Brand：Risun or OEM
  • Transport Package：305m,Pull Box, 2 Pull Box,CTN
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10MPa

Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤2%Insulation Resistance≥5000 MΩ·KMCapacitance≤5.6 nF/100mImpedance100 ± 15 ohmSpark Test2000VVelocity of Propagation69%

Technical Performance:

FrequencyAttenuationRLNextPS Next(MHz)(≤dB/100M)(≥dB)(≥dB)(≥dB)44.123.056.353.385.824.551.848.8106.525.050.347.3168.225.047.244.2209.325.045.842.82510.424.3 44.341.331.25 11.723.642.939.962.517.021.538.435.410022.020.135.332.320032.4218.9231.0828.0825036.8517.6029.6326.6335044.8516.3027.4424.44

Packing:
RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
