FTP Cat5e Cable Network Cable with Ce Certification

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,LSZH,PE
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP CAT5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Brand：Risun or OEM
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa


Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMCapacitance ≤5.6 nF/100mImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%


Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (dB/100m)       (dB)     (dB)          (dB)           4               4.1        23.0    56.3          53.3           8               5.8        24.5    51.8          48.8         10               6.5        25.0    50.3          47.3         16               8.2        25.0    47.2          44.2         20               9.3        25.0    45.8          42.8         25              10.4        24.3    44.3          41.3       31.25              11.7        23.6    42.9          39.9        62.5              17.0        21.5    38.4          35.4        100              22.0        20.1    35.3          32.3

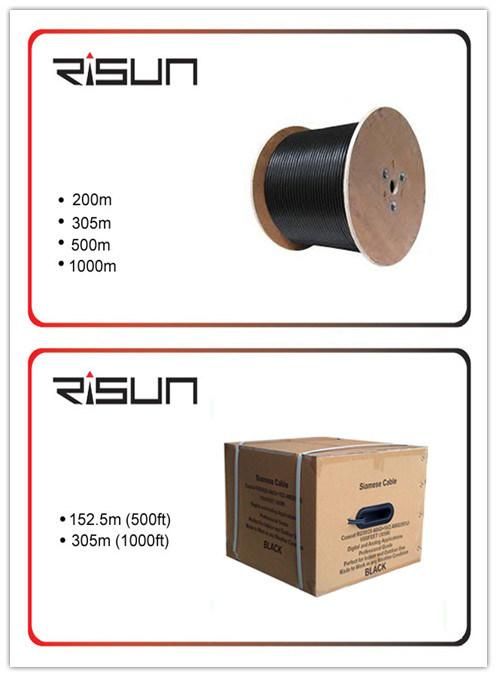

Packing:

FTP Cat5e Cable Network Cable with Ce Certification

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.


FTP Cat5e Cable Network Cable with Ce Certification
FTP Cat5e Cable Network Cable with Ce Certification
