0.6/1kv Cables De Reseau Souterrain Cable Bt 4X35mm2 Alu Steel Armour U 1000 Arvfv Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Cable ARVFV 4x35mm2
- Wire Core Material：Aluminum Wire
- Certification：ISO, CCC, CE, UL
- Model：YJLV22
- Brand：Yifang Cable
- Rated Voltage：0.6,1kv
- Conductor：Aluminum
- Sheath Color：Black
- Cores：4
- Section Area：35mm2
- Country Exported：West Africa:Togo,Cote Diva,All Over The World
- Other Sizes：10mm2 to 240mm2
- Standard：IEC 60502-1 or NFC
- Armour：Double Steel Tape Armour
- Transport Package：Wooden Drum
- Specification：1.1m drum or 2.2drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：8544601200
- Production Capacity：300km Per Month
Description

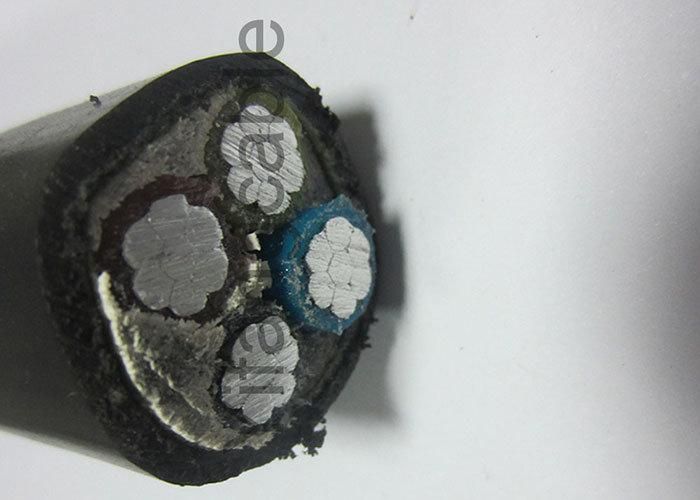

Câble ARVFV (HGE Cable)4x35mm² Alu Item Description Unit Data 1 Standard IEC 60502-1 2 Size 4x35mm2 3 Rated Voltage kV 0.6/1 4 Cores 4 5 Norminal Cross Sectional Area mm2 35 6 Conductor Aluminum Standing No.Of Wire no.s Min.6 Max.DC Resistance at 20ºC Ω/km 0.868 7 Insulation XLPE Norminal Thickness mm 0.9 8 Filler(if any) PP 9 Wrapping tape Non-woven clothing tape 10 Inner Sheath PVC Norminal Thickness mm 1.0 11 Armor Steel tape Norminal Thickness 0.2 12 Outer Sheath PVC Norminal Thickness mm 1.8 13 Overall diameter mm 28.0 14 Approx.Weight kg/km 1025
