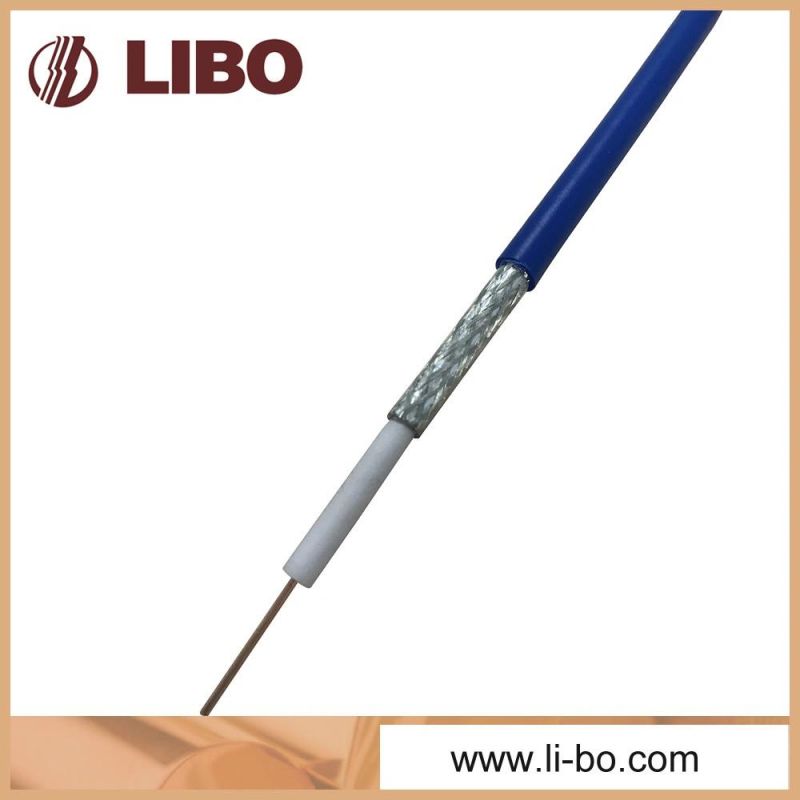

High Quality Best Price Communication Rg58 Coaxial Cable with 50 Ohm (RG58A/U, RG58 C/U, RG58/U)
ZHEJIANG LIBO INDUSTRIAL CO., LTD.- Application：Local Communication Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Hollow Line
- Conductor Type：Stranded
Base Info
- Model NO.：RG58
- Wire Core Material：Steel
- Certification：CE, ISO, RoHS, CCC, UL
- Model：MHYV-xx
- Brand：FUJI
- Industrial/Instrumentation：Rg58
- Contro,：Coaxial Cable
- Transport Package：Plate
- Specification：CE, ROSHS, SGS
- Trademark：Libo cable
- Origin：Zhejiang, China
- HS Code：854420
- Production Capacity：10000kms,Month
Description
construction
Testing item
Unit
Standard
Inner conductor
material
-
20AWG solid copper
diameter
mm
0.813mm+/-0.02mm(0.032 inches)
Dielectric
material
-
solid PE
diameter
mm
2.95mm+/-0.13mm(0.116 inches)
shield, Braid
Material
-
Tinned copper wire
Diameter
mm
0.16
Ends
EA
4
Carrier
EA
16
Pitch
mm
25
Electrical properties
Coverage
%
78%
jacket
PVC
mm
4.90+/-0.13mm(0.193 inches)
Nominal velocity of propagation
%
83%
Capacitance
pF/M
66
Characteristic impedance(10MZ)
Ω
50 ohms+/-3 ohms
SRL
dB
20
Attenuation
20ºC(max)
10MHZ
dB/100m
3.61
50MHZ
8.20
100MHZ
12.46
200MHZ
18.37
400MHZ
27.55
700MHZ
38.38
900MHZ
44.94
1000MHZ
47.56
Competitive Advantage:
RG58 has lower signal loss than smaller diameter cable such as RG 174
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
