• Model NO.：PIII 625JCAM
• Wire Core Material：Copper Clad Aluminum
• Certification：CE, ISO
• Model：P3 625 Jcam
• Brand：Libo
• Diameter Over Jacket：17.40
• Transport Package：500m,762m 2500ft,1000m
• Specification：P3 625JCAM
• Trademark：Libo
• Origin：China
• HS Code：85442000
• Production Capacity：1500km Per Month

Physical dimensions

component

inches

mm

Inner conductor

0.137

3.48

diameter over dielectric

0.565

14.35

diameter over aluminum tube

0.625

15.88

Outer conductor thickness

0.030

0.76

Diameter over jacket

0.685

17.40

Jacket wall thickness

0.030

0.760

Steel messenger diameter

0.109

2.77

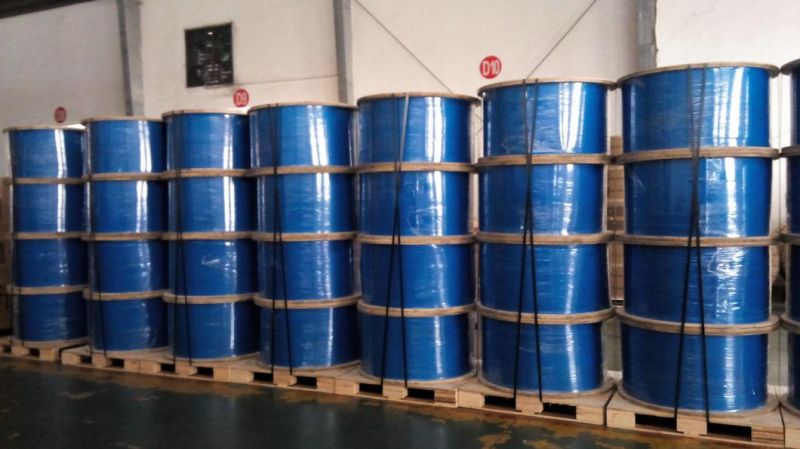

Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.
Mechanical performance:
Minimum breaking strength of messenger: 1800lbs(816kg)
Minimum bending radius: 7.0 inches/17.8cm
Maximum pulling tension: 475lbs /216kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Normal DC loop resistance @68^OF: 1.0 Ohms/100ft(3.51 ohms/km)

Attenuation@ 68^OF(20^oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.13

0.43

55MHZ

0.46

1.51

83MHZ

0.57

1.87

211MHZ

0.92

3.02

250MHZ

1

3.28

300MHZ

1.08

3.54

350MHZ

1.18

3.87

400MHZ

1.27

4.17

450MHZ

1.35

4.43

500MHZ

1.43

4.69

550MHZ

1.50

4.92

600MHZ

1.58

5.18

750MHZ

1.78

5.84

865MHZ

1.93

6.33

1000MHZ

2.07

6.79



Competitive Advantage:

• The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
• To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
• Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
• Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
• Libo cable is equipped with a Provincial-level Research and Development Center.
