• Model NO.：Cable Aluminum 2x16 0.6,1KV Overhead
• Certification：ISO9001, CE, UL, CCC

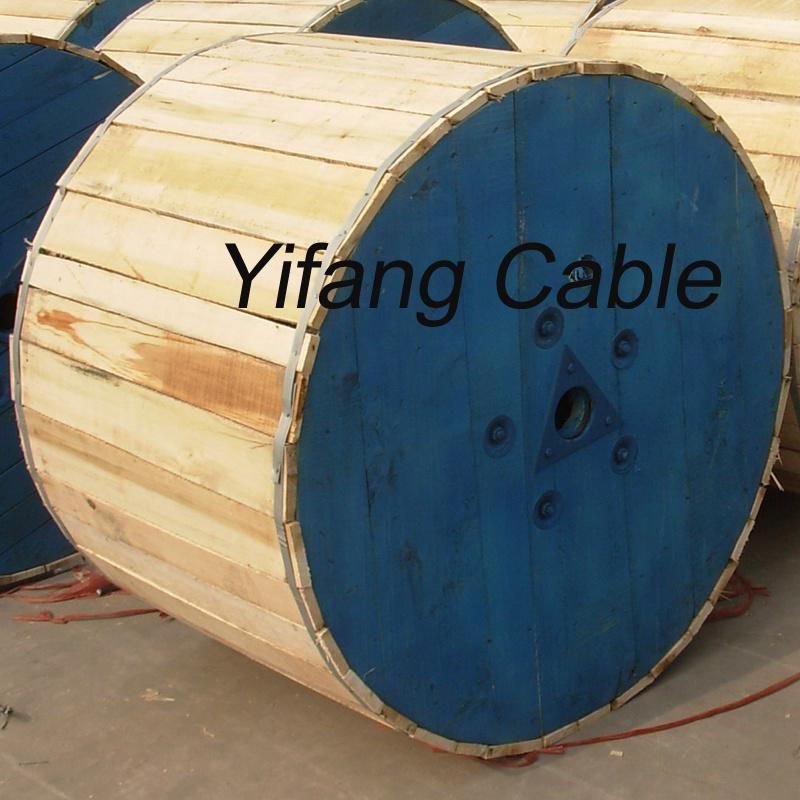

• Transport Package：Wooden Reels
• Trademark：YIFANG
• Origin：China
• HS Code：854460
• Production Capacity：500000km Per Year

Basic Info.

Model NO. Cable Aluminum 2x16 0.6/1KV Overhead Certification ISO9001, CE, UL, CCC Transport Package Wooden Reels Trademark YIFANG Origin China HS Code 854460 Production Capacity 500000km Per Year

Product Description

Cable Aluminum 2x16 0.6/1KV Overhead

conductors

The LV cable used for carrying out the work will be of insulated type, pre assembled rated voltage beams 0,6 / 1 kV.
The beam will consist of three phase conductors, a neutral conductor and two public ligHVing conductors (PE). The sections are specified in the following table:2x16mm2

Cables insulated conductors

These technical clauses specify the following cables insulated conductors:
- LV conductor cables for lines of LV networks
- LV cable conductors for LV circuit breakers transformers links,
- Cable connection LV drivers of public ligHVing fixtures,
LV networks will consist of insulated cables assembled in bundles composed as follows:
- 2 core phase conductors of an aluminum section 16 mm²
- without carrier neutral conductor core Almelec a section of 54.6 mm²
- without public ligHVing conductors aluminum core of a section of 16 mm²

Materials

Insulated cable assembled LV network to beam
The cable will meet the French standard NF C 33-209. The souls of the phase conductors and public ligHVing will consist of hardened aluminum son pure hard 3/4 99.5 M, Type 1370 (A5 / L) to the standard NF C 3 1-122, while core of the neutral conductor is formed of son alloy magnesium aluminum silicon, heat-treated, containing approximately 0.5% magnesium and 0.5% silicon.
Each driver of the beam will be insulated with cross-linked polyethylene extruded jacket black meets the dimensional and mechanical characteristics specified in the NFC 33-209 standards.
