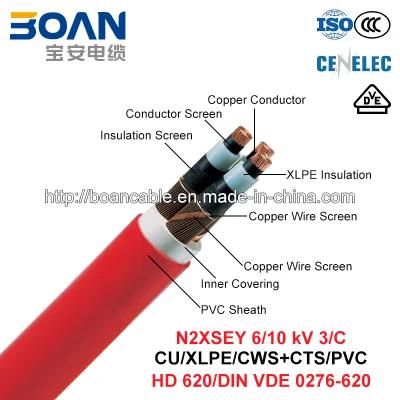

N2xsey, Power Cable, 6/10 Kv, 3/C, Cu/XLPE/Cws/PVC (DIN VDE 0276-620)

Jiangsu Boan Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：N2XSEY
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：N2xsey
  • Brand：Boan
  • Referred Standard：DIN VDE 0276-620
  • Rated Voltage：6,10 Kv
  • Size：35-500 mm2
  • Number of Cores：3
  • Class of Conductor：2
  • Transport Package：Heated Steel-Wooden Drum,Steel Drum
  • Specification：SGS
  • Trademark：DingAn
  • Origin：Jiangsu Yixing, China
  • HS Code：8544601200
  • Production Capacity：12000 Km,Year

Description

Cross-Section AreaApprox. Conductor DiameterInsulation ThicknessCopper Tape ThicknessCopper Wire Screen AreaInsulation DiameterSheath ThicknessOverall DiameterApprox. Weightmm²mmmmmmmm²mmmmmmkg/km256.053.40.11614.31.6412400357.103.40.11615.31.6432800508.253.40.11616.51.7463400709.903.40.11618.11.75042009511.73.40.11619.91.854530012013.13.40.11621.31.857620015014.33.40.12522.51.960720018516.33.40.12524.51.964860024018.73.40.12526.92701070030020.93.40.12529.12.1751290040023.73.40.13531.92.28115900
