0.6/1kv Hfco Frt-Xh Cu/XLPE/LSZH Halogen Free Flame Retardant Cable

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground, in Conduit, in Cable Trunking
  • Conductor Material：Copper
  • Sheath Material：LSZH
  • Insulation Material：XLPE

Base Info

  • Model NO.：CU,XLPE,LSZH
  • Material Shape：Round Wire
  • Range of Application：in Grounding Electric Appliances
  • Certification：ISO9001, CCC, SGS
  • Brand：Hongda
  • Central Conductor：Fine Stranded Copper
  • Insulation：Vinyl-Insulated Cable (XLPE , PE)
  • Transport Package：Drum of 1000 M.
  • Specification：0.5mm2 to 630mm2
  • Trademark：Hongda or as customer require
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：800km,Month

Description

Basic Info.

Model NO. CU/XLPE/LSZH Material Shape Round Wire Range of Application in Grounding Electric Appliances Certification ISO9001, CCC, SGS Brand Hongda Central Conductor Fine Stranded Copper Insulation Vinyl-Insulated Cable (XLPE / PE) Transport Package Drum of 1000 M. Specification 0.5mm2 to 630mm2 Trademark Hongda or as customer require Origin China HS Code 8544492100 Production Capacity 800km/Month

Product Description

0.6/1KV HFCO FRT-XH CU/XLPE/LSZH Halogen Free Flame Retardant Cable

 0.6/1KV HFCO / 6/10KV HFCO
ItemDefinitionCharacteristics
FLAME RETARDANCY* Property of being proof against fire
- Incombustible
- Noninvasive
- Spontaneous combusting		* Passed Vertical Tray Fame Test
- KS C 3341
- IEC 60332-3-24
SMOKE DENSITY* Minimum smoke generation
* Prevention of secondary damage		* Smoke Density: < 150Dm
* Light Penetration Ratio: > 60%
CORROSIVE GAS* Little acid gas (HCI)
* Corrosive gas		* Halogen Acid Gas Generation: < 0.5%
* pH: > 4.3

0.6/1kv Hfco Frt-Xh Cu/XLPE/LSZH Halogen Free Flame Retardant Cable

Applications
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

FRT-XH CU/XLPE/LSZH (2 Cores - 5 Cores)
XLPE Insulated, LSZH Sheathed Cable, 0.6/1kV, IEC60502

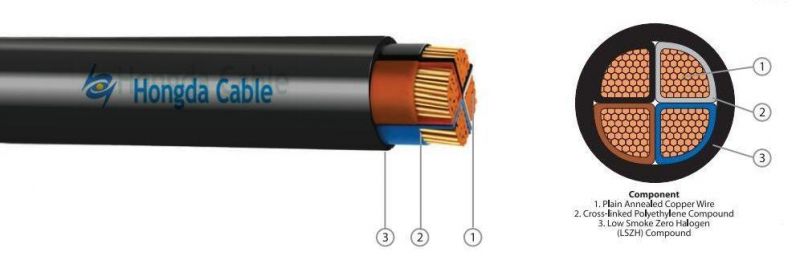

Construction
ConductorPlain annealed copper, Class 2 Stranded Circular, Compacted or Sectored
InsulationCross-linked Polyethylene (XLPE) Compound
Insulation Colour2 cores: Brown, Blue or Red, Black
3 cores: Brown, Black, Grey or Red, Yellow, Blue
4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering or Others
AssemblyCores cabled together with filler and covered with Polyester (PET) Tape
Outer SheathLow Smoke Zero Halogen (LSZH) Compound
Outer Sheath ColourBlack

Electrical Characteristics
Operating Voltage0.6/1kV
Operating Temperature-15°C to 90°C
Final Short Circuit Temperature250C
Test Voltage3.5kV for 5 minutes


Installation Reference

Min. Bending Radius (mm)8 x cable overall diameter
Max. Pulling Tension (N/mm2)50

Reference Standards

Design SpecificationIEC60502-1
ConductorIEC60228, BS EN60228
Flame RetardancyIEC60332-3-22, BS EN60332-3-22
Low Smoke Zero HalogenIEC61034-2, BS EN61034-2
IEC60754-1,IEC60754-2
BS EN50267-2-1, BS EN50267-2-2

Halogen Free Flame Retardant Cable Specification:

Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)
mm^2mmmmmmmm
1x1.51.40.71.45.6
1x2.51.80.71.46.0
1x42.30.71.46.5
1x62.80.71.47.0
1x103.60.71.47.8
1x164.50.71.48.7
1x255.60.91.410.2
1x356.70.91.411.3
1x508.011.412.8
1x709.41.11.414.4
1x9511.01.11.516.1
1x12012.41.21.517.8
1x15013.81.41.619.8
1x18515.31.61.621.8
1x24017.51.71.724.4
1x30019.51.81.826.7
1x40022.621.930.5
1x50025.22.22.033.7
1x63028.32.42.237.4
1x80031.92.62.341.7
1x100035.72.82.446.2

Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)
mm^2mmmmmmmm
2x1.51.40.71.89.2
2x2.51.80.71.810.0
2x42.30.71.811.0
2x62.80.71.812.0
2x103.60.71.813.6
2x164.50.71.815.4
2x255.60.91.818.4
2x356.70.91.820.6
2x508.011.823.6
2x709.41.11.826.8
2x9511.01.11.930.2
2x12012.41.22.033.7
2x15013.81.42.237.5
2x18515.31.62.341.6
2x24017.51.72.546.7
2x30019.51.82.651.4
2x40022.622.958.9

Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)
mm^2mmmmmmmm
3x1.51.40.71.89.6
3x2.51.80.71.810.5
3x42.30.71.811.6
3x62.80.71.812.6
3x103.60.71.814.4
3x164.50.71.816.3
3x255.60.91.819.5
3x356.70.91.821.9
3x508.011.825.1
3x709.41.11.928.7
3x9511.01.12.032.4
3x12012.41.22.136.1
3x15013.81.42.340.3
3x18515.31.62.444.6
3x24017.51.72.650.2
3x30019.51.82.755.2
3x40022.623.063.3

Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)
mm^2mmmmmmmm
4x1.51.40.71.810.4
4x2.51.80.71.811.3
4x42.30.71.812.5
4x62.80.71.813.7
4x103.60.71.815.7
4x164.50.71.817.8
4x255.60.91.821.5
4x356.70.91.824.1
4x508.011.827.8
4x709.41.12.032.0
4x9511.01.12.136.1
4x12012.41.22.340.2
4x15013.81.42.444.9
4x18515.31.62.649.8
4x24017.51.72.856.0
4x30019.51.83.061.7
4x40022.623.270.7

Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)
mm^2mmmmmmmm
5x1.51.40.71.811.2
7x1.51.40.71.812.0
10x1.51.40.71.814.8
12x1.51.40.71.815.2
14x1.51.40.71.816.0
19x1.51.40.71.817.6
21x1.51.40.71.818.4
24x1.51.40.71.820.4
30x1.51.40.71.821.6
40x1.51.40.71.826.0
48x1.51.40.71.826.4
61x1.51.40.71.929.0
5x2.51.80.71.812.2
7x2.51.80.71.813.2
10x2.51.80.71.816.4
12x2.51.80.71.816.9
14x2.51.80.71.817.7
19x2.51.80.71.819.6
21x2.51.80.71.820.6
24x2.51.80.71.822.8
30x2.51.80.71.824.1
40x2.51.80.71.929.4
48x2.51.80.71.929.9
61x2.51.80.72.032.8

1. Tolerance of pulley is ±5%

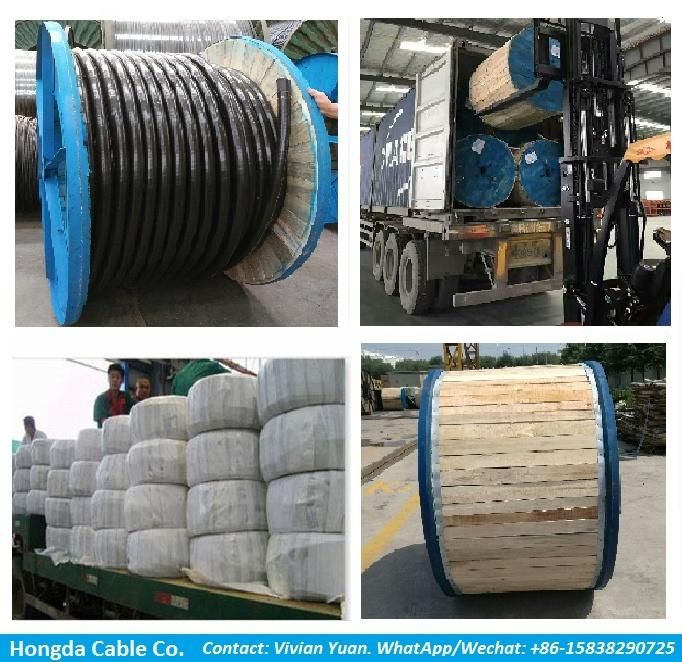

Halogen Free Flame Retardant Cable PACKAGING:
A: Roll of 100 m
B: Drum of 1500 m.
C: Drum of 1000 m.
D: Drum of 500 m.
E: Multiple Drum of 1000 m.
Z - Length to the client's requirement.

0.6/1kv Hfco Frt-Xh Cu/XLPE/LSZH Halogen Free Flame Retardant Cable

Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team

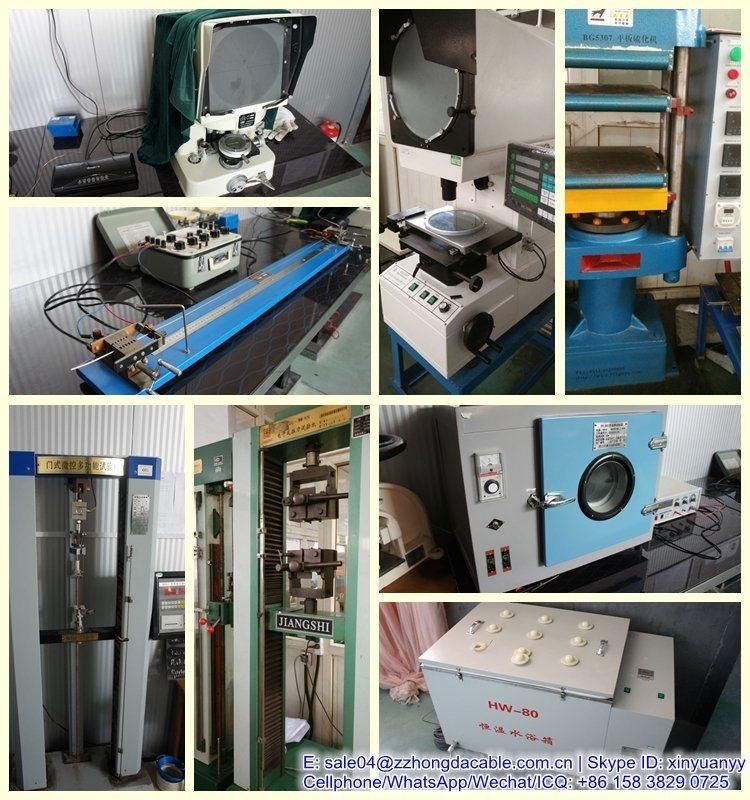

6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
0.6/1kv Hfco Frt-Xh Cu/XLPE/LSZH Halogen Free Flame Retardant Cable

0.6/1kv Hfco Frt-Xh Cu/XLPE/LSZH Halogen Free Flame Retardant Cable


Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
