• Model NO.：YJV RO2V BL 38
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Yjv RO2V
• Brand：Yifang

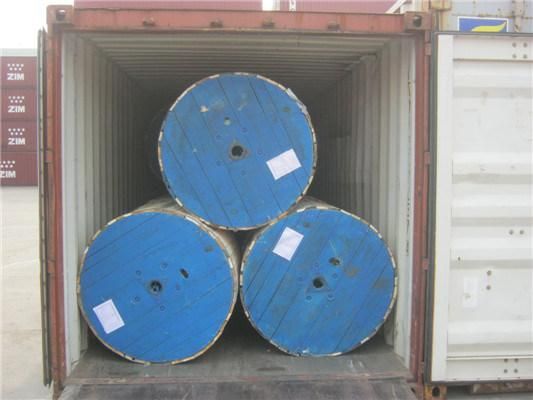

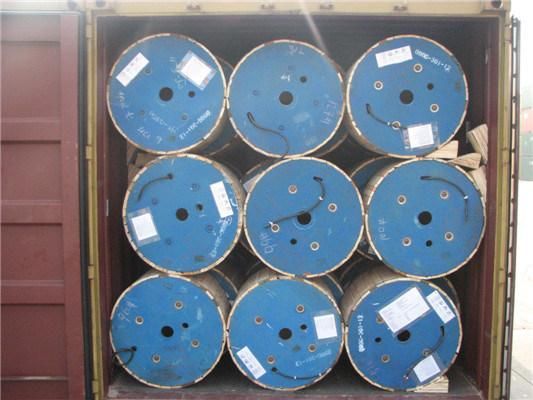

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：500mm2
• Trademark：Yifang
• Origin：Zhengzhou City of Henan Province, China
• HS Code：8544492100
• Production Capacity：500 Kilometers,Month

Basic Info.

Model NO. YJV RO2V BL 38 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjv RO2V Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Specification 500mm2 Trademark Yifang Origin Zhengzhou City of Henan Province, China HS Code 8544492100 Production Capacity 500 Kilometers/Month

Product Description

500mm2 Single Core XLPE Cable  With Copper Core RO2V Cable


1.Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.



2.Using features:

(1.) Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV and 0.6/1kV.

(2.) No. Of core: Single-core, Two-core,Three-core,Four-core,Five-core,Six-core.

(3.) The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250oC.

(4 )D. C. Resistance of the conductor complies with the stipulations of international standar.

(5.) The environment temperature should be no lower than zero degree when lay. Otherwise it should be preheated.

(6.) The cable is laid without horizontal drop limit. The Min. Bending radius of cables should be no smaller than 12 times of cable outer diameter.

(7.) Working Frequency Voltage Test:
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.

(8.) Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable



This series includes:

Copper (aluminum) conductor, XLPE/PVC insulated ,PVC sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, PE sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA) PVC sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA), PE sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PVC sheathed power Cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PE sheathed power cables



-Conductor:
Solid or stranded copper
-Insulation:
Cross-linked polyethylene XLPE
-Circuit Identication:
The insulation shall be red, black or other colors.
-Outer Sheath:
Polyvinyl chloride/ (Black)



3.Our main market:



North America
South America
Southeast Asia
Africa
Oceania
Mid East
Western Africa
Northern Europe
South Asia



Certificates:
