• Model NO.：Airdac CNE cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：10mm2 Cne Airdac Cable
• Brand：Yifang Cable
• Transport Package：Drum
• Specification：4, 10mm2
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：500, 000 Meters Per Month

Basic Info.

Model NO. Airdac CNE cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model 10mm2 Cne Airdac Cable Brand Yifang Cable Transport Package Drum Specification 4, 10mm2 Trademark Yifang Origin China HS Code 8544492100 Production Capacity 500, 000 Meters Per Month

Product Description

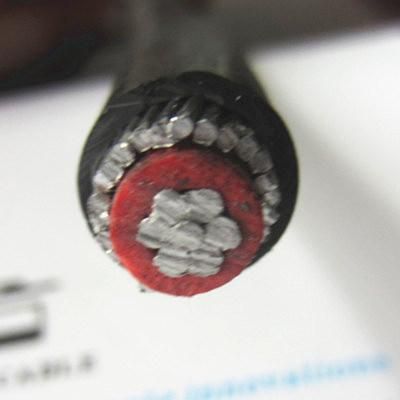

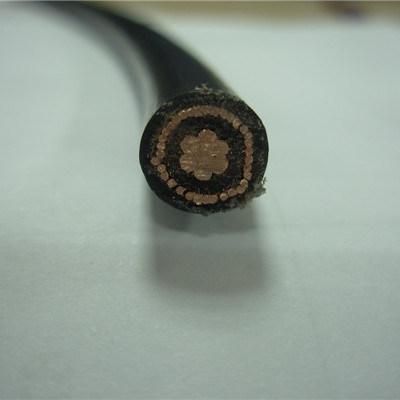

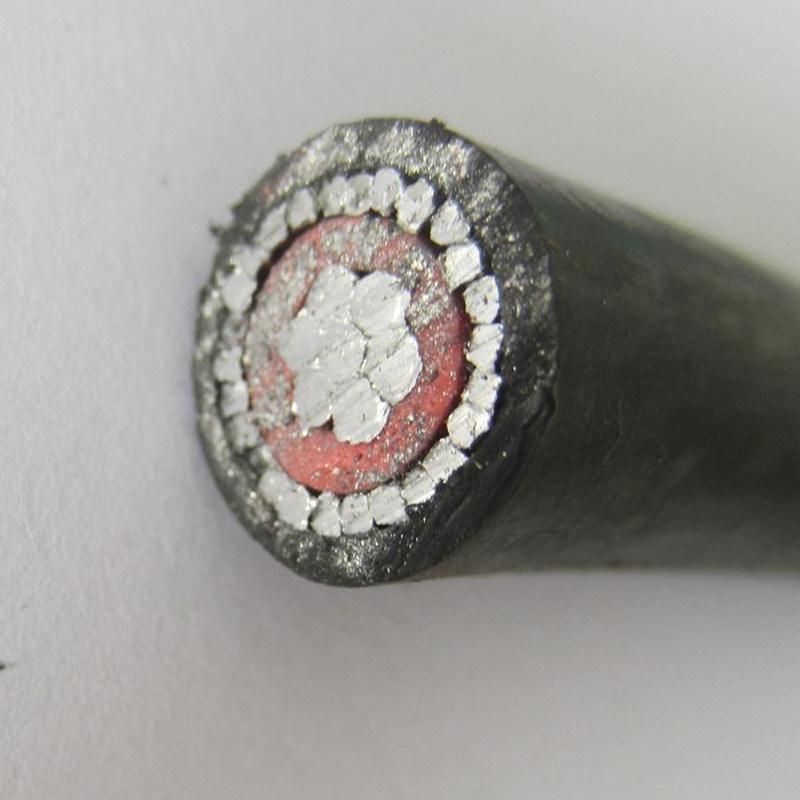

10mm2 Al Airdac Cne Cable

Airdac CNE and SNE, 600/1000V,

Polyethylene Sheath, SANS 1507, NRS 063 & NRS 017

Conductor: Hard Drawn Copper Conductor - Class 2
Insulation: LV-XLPE
Phase Color Code(SNE): Red, Black & Bare Copper
Phase Color Code (CNE): Red & Bare Copper
Application: Used for house connections , with or without coms wire.
 Technical Data
4mm², AIRDAC II CNE Cable

Electrical Properties Cable size: 4mm² Phase Conductor Resistance (Ohm/km) DC @ 20 °C: 4,80 Phase Core Impedance (Z) (Ohm/km): 5,88 Current Rating (A)*: 30 Symmetrical Short Circuit Rating for 1s in kA: 0,572 * Note: - In air, with 30 °C ambient with maximum conductor temperature 90 °C Mechanical Properties Cable size: 4mm² Phase Conductor (No.xOD): 7x0.92mm Nominal Insulation Thickness: 1.0mm Earth size: 4mm² Earth Conductor (No.xOD): 8x0.85mm Nominal Sheath Thickness: 1.4mm Approximate Cable OD: 9.0mm Approximate Cable Mass: 121 kg/km Installation Data (SAG* mm): Span 10(mm) :40 Span 20(mm) :165 Span 30(mm) :370 Span 40(mm) :650 Span 50(mm) :1020 Based on UTS** :1480 MWT*** :370


10mm², AIRDAC II CNE Cable

Electrical Properties Cable size: 10mm² Phase Conductor Resistance (Ohm/km) DC @ 20 °C: 1,90 Phase Core Impedance (Z) (Ohm/km): 2,34 Current Rating (A)*: 50 Symmetrical Short Circuit Rating for 1s in kA: 1,431 * Note: - In air, with 30 °C ambient with maximum conductor temperature 90 °C Mechanical Properties Cable size: 10mm² Phase Conductor (No.xOD): 7x1.45mm Nominal Insulation Thickness: 1.0mm Earth size: 10mm² Earth Conductor (No.xOD): 18x0.85mm Nominal Sheath Thickness: 1.4mm Approximate Cable OD: 11.0mm Approximate Cable Mass: 249 kg/km Installation Data (SAG* mm): Span 10(mm) :35 Span 20(mm) :140 Span 30(mm) :310 Span 40(mm) :550 Span 50(mm) :870 Based on UTS** :3600 MWT*** :900
