• Model NO.：K-GGP
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, RoHS
• Brand：Fongming
• Conductor：Ni-Cr ,Ni-Si
• Insulation：Fiberglass Wrapping
• Braided：Fiberglass
• Color：Red, Green, Yellow, Blue
• Jacket：Fiberglass Braid with High Temperature
• Shield：Stainless Steel
• Model：K-Gg-P Type
• Size：2*26-2*14AWG
• Transport Package：Cartons and Pallet
• Specification：2*26-2*14AWG
• Trademark：Fongming
• Origin：P. R China, Yangzhou
• HS Code：8544492100
• Production Capacity：3000km Per Month

Basic Info.

Model NO. K-GGP Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, RoHS Brand Fongming Conductor Ni-Cr ,Ni-Si Insulation Fiberglass Wrapping Braided Fiberglass Color Red, Green, Yellow, Blue Jacket Fiberglass Braid with High Temperature Shield Stainless Steel Model K-Gg-P Type Size 2*26-2*14AWG Transport Package Cartons and Pallet Specification 2*26-2*14AWG Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per Month

Product Description

factory price K Type  fiberglass  insulation  fiberglass jacket   stainless steel shield   thermocouple cable

Description
Name:Thermocouple wire
Model:K-GG-P Type
Size:2*26-2*14AWG

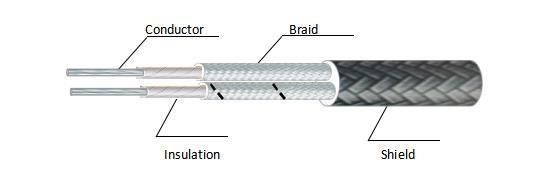

Structure
Conductor:Ni-Cr ,Ni-Si
Inner Insulation:Fiberglass Wrapping and Silicone Resin Coating
Outer Insulation:Fiberglass Braid  and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White
Shield:Stainless Steel

Model



Specification


Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Inner Insulation Thickness (mm)	Diameter (mm)	Outer Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.13	0.74	0.2	1.1	0.2	1.5±0.2*2.4±0.2
2*24	7/0.2	0.6	0.13	0.86	0.2	1.3	0.2	1.7±0.2*2.8±0.2
2*22	7/0.254	0.76	0.13	1.02	0.2	1.4	0.2	1.8±0.2*3.0±0.2
2*20	7/0.32	0.96	0.13	1.22	0.2	1.6	0.2	2.0±0.2*3.4±0.2
2*18	7/0.39	1.17	0.13	1.43	0.2	1.8	0.2	2.2±0.2*3.8±0.2
2*16	19/0.3	1.5	0.13	1.76	0.2	2.2	0.2	2.6±0.2*4.6±0.2
2*14	19/0.37	1.85	0.13	2.11	0.2	2.5	0.2	2.9±0.2*5.2±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered
