Factory Price PVC Insulation PVC Jacket Type J Thermocouple Extension Cable
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Underground, Instrument Thermocouple
- Conductor Material:Fe, Cu-Ni
- Sheath Material:PVC
- Insulation Material:PVC
Base Info
- Model NO.:JX-VV
- Material Shape:Round Wire
- Range of Application:Temperature Measuring
- Certification:ISO9001, CE, UL, RoHS
- Brand:Fongming
- Conductor:Fe, Cu-Ni
- Insulation:Mica Glass Composite
- Braided:Fiberglass
- Coated:Silicone Rubber
- Color:Red, Green, Yellow, Blue
- Rating Voltage:15kv,DC 20kv,DC 25kv,DC
- Working Temperature:-60 Oc---+ 200 Oc
- Jacket:Fiberglass Braid with High Temperature
- Name:Thermocouple Wire
- Transport Package:Cartons and Pallet
- Specification:AS CUSTOMER REQUIREMENT
- Trademark:Fongming
- Origin:P. R China, Yangzhou
- HS Code:8544492100
- Production Capacity:3000km Per Month
Description
Basic Info.
Model NO. JX-VV Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, UL, RoHS Brand Fongming Conductor Fe, Cu-Ni Insulation Mica Glass Composite Braided Fiberglass Coated Silicone Rubber Color Red, Green, Yellow, Blue Rating Voltage 15kv/DC 20kv/DC 25kv/DC Working Temperature -60 Oc---+ 200 Oc Jacket Fiberglass Braid with High Temperature Name Thermocouple Wire Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per MonthProduct Description
factory price pvc insulation pvc jacket Type J thermocouple extension cableDescription
Name:Thermocouple wire
Model:JX-V-V Type
Size:2*26-2*14AWG

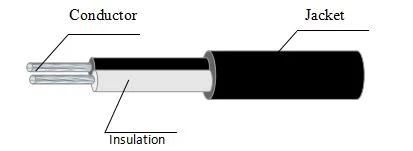

Structure
Conductor:Fe,Cu-Ni
Insulation: PVC
Color: P: Black,N:White
Jacket: PVC
Model
Size (mm) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 0.5 | 2.1*3.2 |
2*24 | 7/0.2 | 0.6 | 0.3 | 1.2 | 0.5 | 2.2*3.4 |
2*22 | 7/0.254 | 0.76 | 0.3 | 1.4 | 0.5 | 2.4*3.8 |
2*20 | 7/0.32 | 0.96 | 0.3 | 1.6 | 0.5 | 2.6*4.2 |
2*18 | 7/0.39 | 1.17 | 0.4 | 2.0 | 0.6 | 3.2*5.2 |
2*16 | 19/0.3 | 1.5 | 0.4 | 2.3 | 0.6 | 3.5*5.8 |
2*14 | 19/0.37 | 1.85 | 0.4 | 2.7 | 0.6 | 3.9*6.6 |
Certificates:
UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.
Packaging & Shipping
1. Package length | 200meres 305meter 500meter As customers requirement |
2. Package method | Rolls, spool or coil, Pallets if need. |
3: Shipping port | Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port |
Company Information
Factory Size (Sq.meters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Hot Products
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
