400Hz Airport Cables Single Core TPE Insulated Cable
YIFANG ELECTRIC GROUP INC.- Application：Airport
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：No
- Material Shape：Round Wire
Base Info
- Model NO.：Airport Cables
- Wire Core Material：Tinned or Bare Copper
- Certification：ISO
- Model：400Hz Airport Cables
- Brand：Yifang
- Standard：VDE 0295
- Transport Package：Drum
- Specification：25mm2 to 50mm2
- Trademark：yifang
- Origin：China
- HS Code：854449
- Production Capacity：10000m Per Week
Description
Basic Info.
Model NO. Airport Cables Wire Core Material Tinned or Bare Copper Certification ISO Model 400Hz Airport Cables Brand Yifang Standard VDE 0295 Transport Package Drum Specification 25mm2 to 50mm2 Trademark yifang Origin China HS Code 854449 Production Capacity 10000m Per WeekProduct Description
400Hz Airport Cables Single Core TPE insulated Cable
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards: VDE 0295

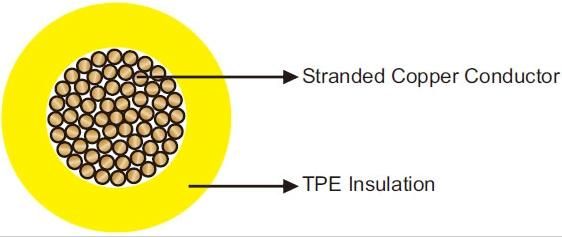

Construction
| Conductor | Stranded copper conductor, Class 5 to VDE 0295/IEC 60228. |
| Insulation | TPE. |
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40ºC~+90ºC |
| Minimum Bending Radius | Static: 6×OD; Dynamic: 7×OD |
| Halogen Free | Yes |
| Abrasion Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. × mm^2 | mm | kg/km |
| 1×35 | 11.5 | 430 |
| 1×50 | 12.6 | 665 |
| 1×70 | 14.0 | 910 |
| 1×120 | 23.0 | 1545 |
