• Model NO.：K-GSI-GSI
• Material Shape：Round Wire
• Range of Application：Temperature Measuring
• Certification：ISO9001, CCC
• Brand：Fongming
• Name：Thermocouple Wire
• MOQ：1000 Meters
• Sample：1 Meter Free, 3 Days
• Lead Time：7 Days
• Model：K-Gsi-Gsi
• Conductor：Fe, Cu-Ni
• Insulation：High Silica Braid and Silicone Resin Coating
• Jacket：High Silica Braid and Silicone Resin Coating
• Transport Package：Cartons and Pallet
• Specification：AS CUSTOMER REQUIREMENT
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. K-GSI-GSI Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CCC Brand Fongming Name Thermocouple Wire MOQ 1000 Meters Sample 1 Meter Free, 3 Days Lead Time 7 Days Model K-Gsi-Gsi Conductor Fe, Cu-Ni Insulation High Silica Braid and Silicone Resin Coating Jacket High Silica Braid and Silicone Resin Coating Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

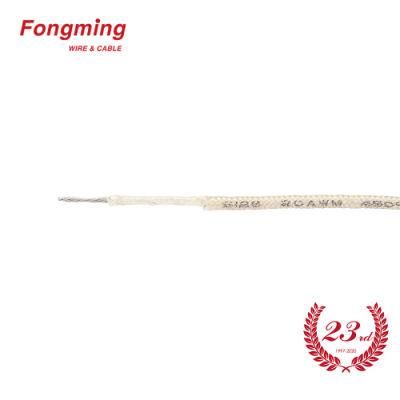

High temperature resistance K Type Fiberglass braided insulated thermocouple cable
Description
Name:Thermocouple wire
Model:K-GSi-GSi Type
Size:2*26-2*14AWG

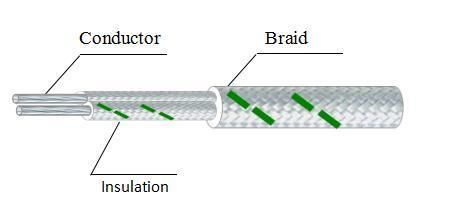

Structure
Conductor:Ni-Cr ,Ni-Si
Insulation:High Silica Braid and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White

Model

Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2 *3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3±0.2 *4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7±0.2 *4.8±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
