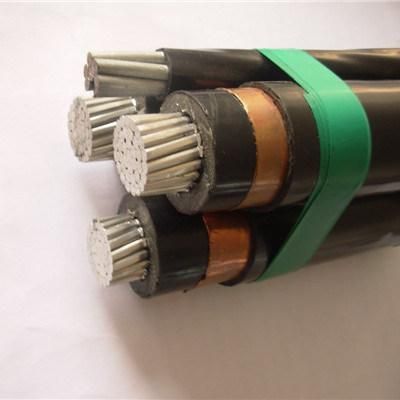

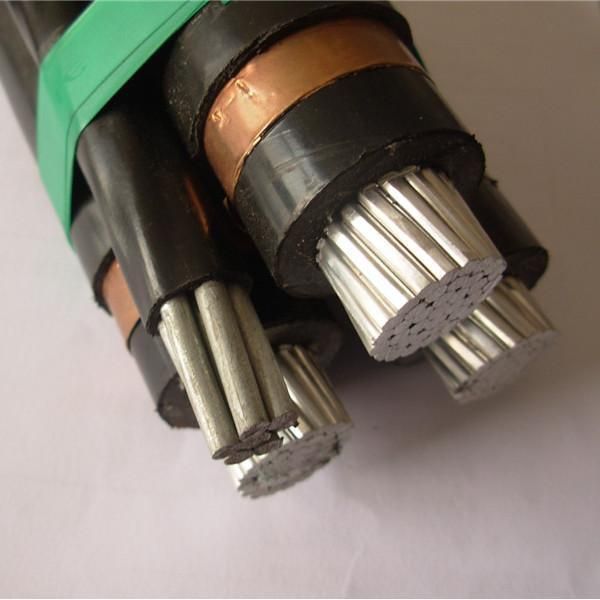

15 kV Medium Voltage Aerial Bundled Cable 3*50+1*25 SQMM Overhead Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Medium Voltage Aerial Bundled Cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, KEMA
- Model：Aerial Cable
- Brand：Yifang
- Core：3+1
- Sheath Colour：Black or According to Requirement
- Standard：Sans 1713, IEC 60502-2
- Metallic Screen：Copper Tape or Copper Wire

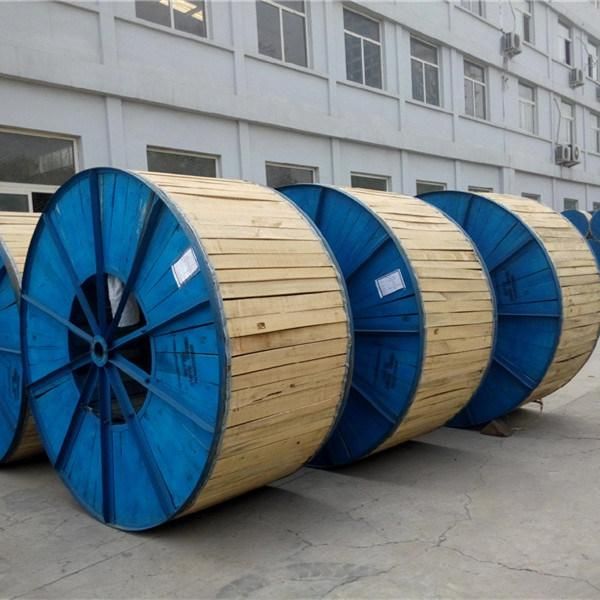

- Transport Package：Drum
- Specification：50mm2-630mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544601200
- Production Capacity：100km Per Month
Description
NUMBER OF CORES X NOMINAL CROSS SECTION
PHASE CONDUCTOR
MESSENGER SUSPENSION UNIT
CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
STRANDING
NOMINAL SECTIONAL AREA
MAXIMUM CONDUCTOR RESISTANCE
STRANDING
NOMINAL SECTIONAL AREA
BREAKING LOAD
NO.×MM²
NO.×MM
MM²
Ω/KM
NO.×MM
MM²
KN
A
3X50 + 1X25
19/1.78
50
0.641
7/3.0
50
60
116
3X70 + 1X50
19/.14
70
0.443
7/3.15
50
62
210
3X95+ 1X50
19/2.52
95
0.32
7/3.0
50
60
173
3X185+1X120
37/2.52
185
0.164
7/4.67
120
150
259
3X150 +1X50
37/2.25
150
0.206
7/3.15
50
62
365
3X240 +1X50
61/2.25
240
0.125
7/3.15
50
62
500
19/33KV ABC cable
PHASE CONDUCTOR
MESSENGER SUSPENSION UNIT
CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
STRANDING
NOMINAL SECTIONAL AREA
MAXIMUM CONDUCTOR RESISTANCE
STRANDING
NOMINAL SECTIONAL AREA
BREAKING LOAD
NO.×MM²
NO.×MM
MM²
Ω/KM
NO.×MM
MM²
KN
A
3X50 + 1X50
19/1.78
50
0.641
7/3.0
50
60
165
3X150+ 1X50
37/2.25
150
0.206
7/3.0
50
60
315
3X185+1X70
37/2.52
185
0.164
7/3.57
70
91
355
3X70 +1X50
19/2.14
7
0.443
7/3.15
50
62
250
