Cable & Wire

7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire

Ningbo Junyi Zhonghao Import & Export Co., Ltd.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Road Vehicles
  • Conductor Material:Copper
  • Sheath Material:PVC
  • Insulation Material:PVC

Base Info

  • Model NO.:Insulated
  • Material Shape:Round Wire
  • Range of Application:Refractory
  • Certification:ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand:Black Elephant
  • Standard:Jb,T 8139-1999
  • Core Amount:7 Cores
  • Sample:Available
  • Transport Package:Wooden,Steel Drum or as Specified
  • Specification:1x2.5+6x1.5mm²
  • Trademark:Black Elephant , Customizable
  • Origin:Sichuan, China
  • Production Capacity:300000km,Year

Description

TypeNameCore AmountNominal Cross-SectionQVRCopper core PVC insulated road vehicles low-tension wire10.2-120mm²QFRCopper core PVC and NBR compound insulated road vehicles low-tension wire10.2-120mm²QVR-105Copper core heat-resistance 105 ºC PVC insulated road vehicles low-tension wire10.2-120mm²QVVRCopper core PVC insulated PVC sheathed road vehicles low-tension wire71x2.5+6x1.5 mm² The conductor resistance at 20ºC is not greater than Ω/kmCopper conductorTin plated copper0.212/0.150.31.393.3950.316/0.150.31.469.271.20.423/0.150.31.648.249.60.516/0.200.62.43940.10.7524/0.200.62.62626.7132/0.200.62.819.5201.530/0.250.63.113.313.72.549/0.250.73.77.988.21456/0.300.84.54.955.09684/0.300.85.13.33.391084/0.4016.71.911.9516126/0.4018.51.211.2425196/0.401.310.60.780.79535276/0.401.311.80.5540.56550396/0.401.513.70.3860.39370360/0.501.513.70.2720.27792475/0.501.618.20.2060.21120608/0.501.618.80.1610.164

ABOUT US

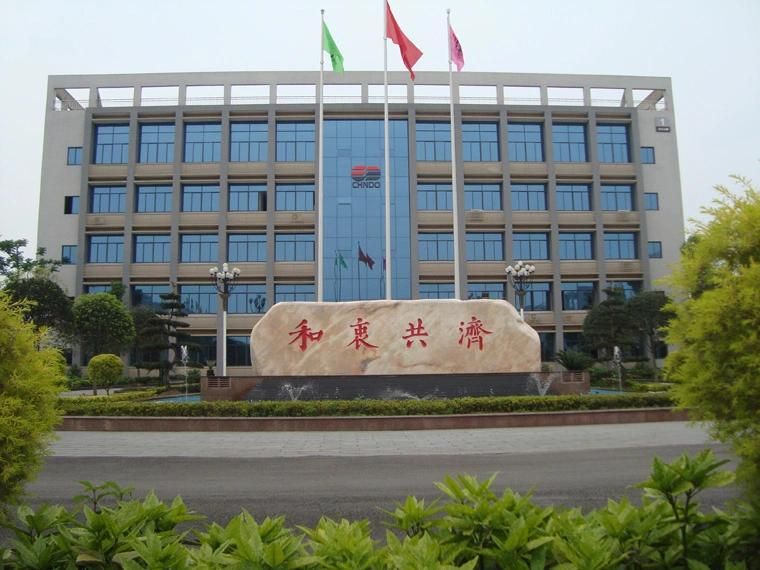

Sichuan Chndo Cable Co., Ltd lies in Dazhu county, Sichuan province, China. Founded in 1970, covers an area of 140,000 square meters. It's an appointed cable manufacturing enterprise approved by China Department of Mechanical Industry, "Science and Technology Oriented Enterprise" and "One of the Biggest Taxation Contribution Enterprise" in Sichuan province, and its products are "Sichuan Famous Brand Product" and "Product Exemption From Quality Surveillance Inspection in China".
    In 1995, "Black elephant" products are awarded "Recommended Products for National Dwelling Buildings of Well-to-do Level " by National Science and Technology Committee and Department of Construction. In 1996, "Black elephant" products are awarded "First Class Products" in national quality test and honored "Sichuan Famous Brand Product"   Presently, "Black Elephant" brand wires and cables are produced according to GB and IEC standards ,consisting of wires and cables for electrical equipment (PVC & rubber insulated), power cables, aerial cables, and special cables, more than 200,000 km output per year.
   "Black Elephant" products are vastly used nowadays in middle China, south and southwest China, Hong Kong, Australia, Turkmenistan and other countries, such as Petro China, SINOPEC, Nine Dragons Paper (Holdings) Limited, China Resources(Holdings) Ltd, Yangtze River Shipping Group, LAFARGE China and ABB Australia Pty Limited.

 7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire
7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire
WHY CHOOSE US

Established in 1970, with over 50 years of industry knowledge, we have grown to become the most important cable supplier in China.
VALUE & TRUST
We acknowledge that value and trust are the ingredients of a quality relationship.  No matter the size of the business, order, industry or sector we can assist.
QUALITY ASSURANCE
All products are in compliance with relevant standards and all cables have passed a number of Chinese and international certifications.
PRODUCTION CAPACITY
We have more than 500 sets of advanced production equipment to meet the needs of various projects.
R&D CAPABILITY
The company has more than 160 senior professional and technical personnel, established the east Sichuan cable Research Institute, has a number of patented technologies and patented products.

GLOBAL SUPPLY
Enquiries are welcome from customers worldwide. Our export service is efficient and reliable with the ability to ship to any destination in the world.
CUSTOMER SERVICE
TradeMessenger 24 hours online, you can contact him for any quote, order, query or any general question.

7 Cores Copper Core PVC Insulated PVC Sheathed Road Vehicles Low-Tension Wire


FAQ

1). Is your company a factory or a trading company?
We are a trading company, mainly responsible for the export business of Sichuan Chndo Cable Co., LTD. Our trade is expanding both at home and abroad.
2). When can I know the price?
We usually make an offer within 1-2 days after receiving your inquiry. If you need a price urgently, please call or email us and we will give priority to your inquiry.
3).How can I have a sample to check your quality?
After the price is fixed, you can ask for samples to check our quality. The sample is free, but you have to pay the freight.
4). What's the minimum quantity?
Generally 1000 meters for building wire. Cable, armored or unarmored, 500 m.
5). What are the standards of your product?
The company can produce wire and cable of various specifications according to IEC, ASTM, BS, DIN, SANS, CSA and other international standards.
6). What about lead time?
If we have it in stock, delivery will be quick. New products take 15-25 days to produce.
7). Terms of payment:
We usually pay 30% in advance and the balance before delivery. Or 100% sight l/C.
8). What is your packing?
Our cables are packed in cable wheels, which can be made of steel, steel frame, fumigated wood or wooden cases. We use different packaging for different lengths of cables to ensure that the products will not have problems during transportation.
