• Model NO.：En50228-7 Cable
• Range of Application：LSOH
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Transport Package：Wooden Drum
• Specification：1.5mm to 10mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

Flame Retardance (Single Vertical Wire Test)EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)***EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4Halogen FreeIEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1 ; BS 6425-1*No Corrosive Gas EmissionIEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2 ; BS 6425-2*Minimum Smoke EmissionIEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*No Toxic gasesNES 02-713; NF C 20-454Sunlight ResistanceUL 1581 section 1200Oil Resistance**ICEA S-73-532

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

RE-2X(St)H PiMFNo. of Pairs x2xCross SectionNominal Insulation ThicknessNominal Outer Sheath ThicknessNominal Overall DiameterApprox.  WeightNo.x2xmm2mmmmmmkg/km0.5mm2, Multipair2x2x0.50.350.98.7854x2x0.50.351.010.21205x2x0.50.351.011.21456x2x0.50.351.012.11708x2x0.50.351.113.121410x2x0.50.351.215.126512x2x0.50.351.215.728616x2x0.50.351.217.838020x2x0.50.351.319.747524x2x0.50.351.421.55610.75mm2, Multipair2x2x0.750.381.09.71013x2x0.750.381.011.21594x2x0.750.381.112.51835x2x0.750.381.113.62158x2x0.750.381.114.427210x2x0.750.381.216.633312x2x0.750.381.217.438316x2x0.750.381.319.849220x2x0.750.381.422.060324x2x0.750.381.524.07041.0mm2, Multipair2x2x1.00.41.010.41123x2x1.00.41.012.11794x2x1.00.41.113.52205x2x1.00.41.114.72568x2x1.00.41.215.832310x2x1.00.41.218.040112x2x1.00.41.319.045416x2x1.00.41.321.560120x2x1.00.41.423.971924x2x1.00.41.526.18841.3mm2, Multipair2x2x1.30.451.011.41533x2x1.30.451.113.42084x2x1.30.451.114.82635x2x1.30.451.216.33188x2x1.30.451.317.640610x2x1.30.451.320.050112x2x1.30.451.421.155216x2x1.30.451.524.172820x2x1.30.451.626.889224x2x1.30.451.729.210671.5mm2, Multipair2x2x1.50.451.011.81643x2x1.50.451.113.92354x2x1.50.451.215.52895x2x1.50.451.216.93668x2x1.50.451.318.244610x2x1.50.451.421.056512x2x1.50.451.421.963716x2x1.50.451.525.182820x2x1.50.451.627.8102424x2x1.50.451.730.41219

Note : Other conductor sizes & core configurations are available upon request

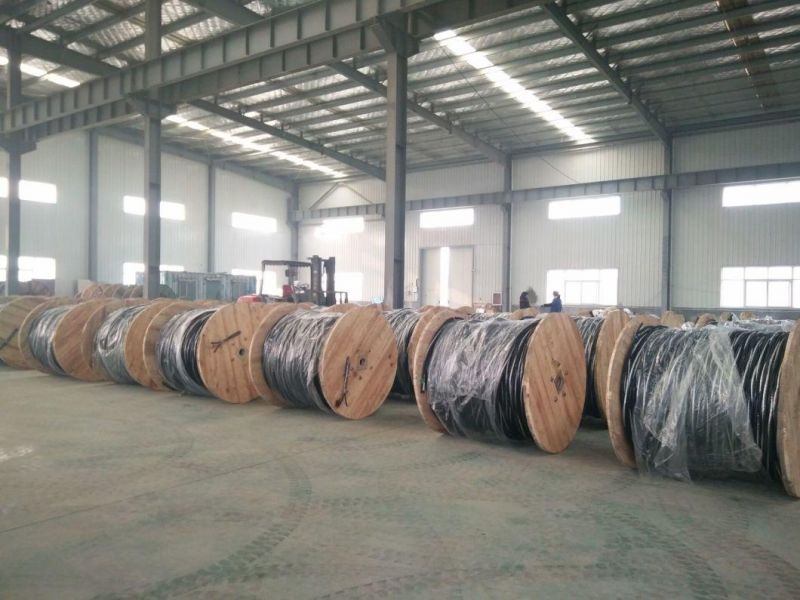

Packing shipping
