• Model NO.：4x95mm2
• Model：YJV
• Brand：Yifang
• Size：2.5-630mm2
• Transport Package：Wooden Drum or Wooden-Steel Drum
• Specification：CE SABS RoHS SGS UL CCC
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：300km,Month

Basic Info.

Model NO. 4x95mm2 Model YJV Brand Yifang Size 2.5-630mm2 Transport Package Wooden Drum or Wooden-Steel Drum Specification CE SABS RoHS SGS UL CCC Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544492100 Production Capacity 300km/Month

Product Description

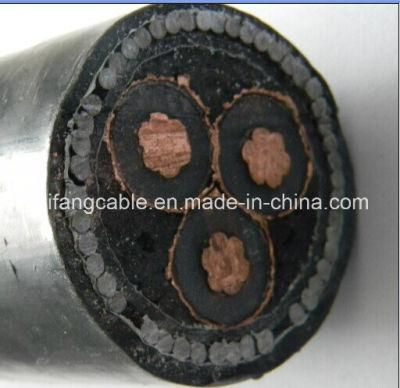

0.6/1kV 8.7/15kV Copper/Aluminum Conductor Flame Retardant Cable Steel Wire Armoured Power Cable

Our superiority for power cable:
A. More than 23 years manufacturing experience
B. High quality with competitive price
C. Delivery on time for clients
D. As a leader supplier in local area

Product description for power cable:

0.6/1KV Cu/Al Conductor XLPE Insulation PVC Sheath Power Cable:
A. The applications:
Rated voltage (U0/U) 0.6/1KV in transmission & transformation line & for water-proofing purpose.
B. Standards:
IEC60502-1 2004 ISO9001: 2008
C. Product Features:
- No necessary to heat up in advance while installing above 0oC.
- Max. Continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
- Max. Permissible temperature at short circuit (5s. At longest): 250oC.
- Permissible bending radius:
D. Single core: No less than 20times (d+D) plus or decrease 5%.
E. Three-core: No less than 15 times (d+D) plus or decrease 5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).


Notes: The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.

1  core	1*10;   1*16;   1*25;   1*35;   1*50;   1*70;   1*95;   1*120;   1*150;   1*185;   1*240;   1*300;   1*400
2  core	2*1.5;   2*2.5;   2*4;   2*6;   2*10;   2*16;   2*25;   2*35;   2*50;   2*70;   2*95;   2*120;   2*150;   2*185;   2*240;   2*300
3core	3*1.5;   3*2.5;   3*4;   3*6;   3*10;   3*16;   3*25;   3*35;   3*50;   3*70;   3*95;   3*120;   3*150;   3*185;   3*240;   3*300
4  core	4*4;   4*6;   4*10;   4*16;   4*25;   4*35;   4*50;   4*70;   4*95;   4*120;   4*150;   4*185;   4*240
5  core	5*1.5;   5*2.5;   5*4;   5*6;   5*10;   5*16;   5*25;   5*35;   5*50;   5*70;   5*95;   5*120;   5*150;   5*185;   5*240;
3+1 core	3*4+1*2.5;   3*6+1*4;   3*10+1*6;   3*16+1*10;   3*25+1*16;   3*35+1*16;   3*50+1*25;   3*70+1*35.
4+1 core	4*2.5+1*1.5;   4*4+1*2.5;   4*6+1*4;   3*10+1*6;   4*16+1*10;   4*25+1*16;   4*35+1*16;   4*50+1*25;   4*70+1*35;   4*95+1*50;   4*120+1*70;   4*150+1*70;   4*185+1*95;   4*240+1*120;   4*300+1*150.
