• Model NO.：NHA(B)-VV
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC
• Brand：Yifang
• Size：2.5-185mm2
• Transport Package：Wooden Drum or Wooden-Steel Drum
• Specification：CE SABS RoHS SGS UL CCC
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：300km,Month

Basic Info.

Model NO. NHA(B)-VV Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, CCC Brand Yifang Size 2.5-185mm2 Transport Package Wooden Drum or Wooden-Steel Drum Specification CE SABS RoHS SGS UL CCC Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544492100 Production Capacity 300km/Month

Product Description

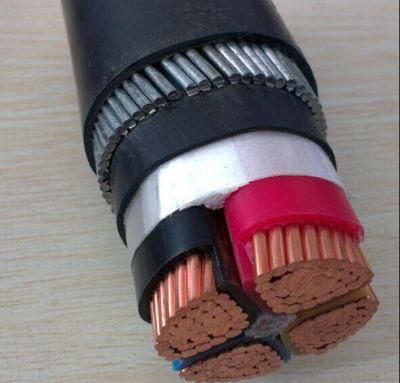

Fire-Retardant Power Cable, Flame resistance cable

1). Application
The cables are designed for fixed installation, for 0.6/1kV, for power transmission and distribution equipments where fire retardatio is requested.

2). Number of cores: 1, 2, 3, 4, 3+1, 3+2;

3). Nom. Coress section range: 2.5~185mm2

4). Operating characteristic

A. AC Rated voltage Uo/U is 0.6/1kV.
B. Testing flame temperature:
Cateaoty A is 950~1000 degree. Cateaoty B is 750~ 800 degree.
C. Permissive continuous working temperature of conductor of PVC, PE insulated cable is no more than 70 degree, and permissive continuous working temperature of conductor of XPLE is no more than 90 degree.
D. The lowest ambient temperature of cable installatio is 0degree.
E. Min. Bending radius of cable installation is:
Non-armoured cable 10Dmm;
Armoured cable 12Dmm.
In the formula: D-actual external diameter of cable, mm

Type	Description	Application
NHA(B)-VV	Copper core PVC insulated and sheathed fire-retarding control cable	For fixed instaliation laying indoors,in trenches sand ducts.
NHA(B)-VV22	copper core PVC insulated and sheathed fire-retarding control cable with steel tape armour	For fixed instaliation laying indoors,in trenches and ducts where heavire mechanic force is withstood
NHA(B)-YJV	copper core XLPE insulated and PVC sheathed fire-retarding control cable with steel armour	For fixed instaliation laying indoors,in trenches sand ducts.
NHA(B)-YJV22	copper core XLPE insulated and PVC sheathed fire -retarding control cable with steel armour	For fixed instaliation laying indoors,in trenches and ducts where heavire mechanic force is withstood
NHA(B)-YV	copper core PE insulated and PVC sheathed fire-retarding control cable	For fixed instaliation laying indoors,in trenches sand ducts.
NHA(B)-YV22	copper core PE insulated and PVC sheathed fire-retarding control cable with steel tape armour	For fixed instaliation laying indoors,in trenches and ducts where heavire mechanic force is withstood
