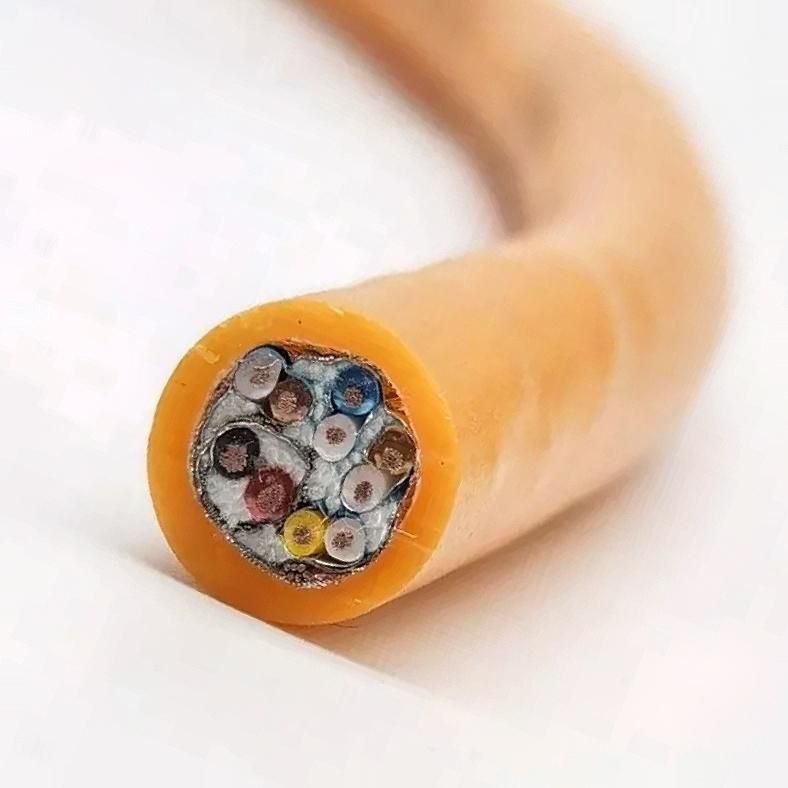

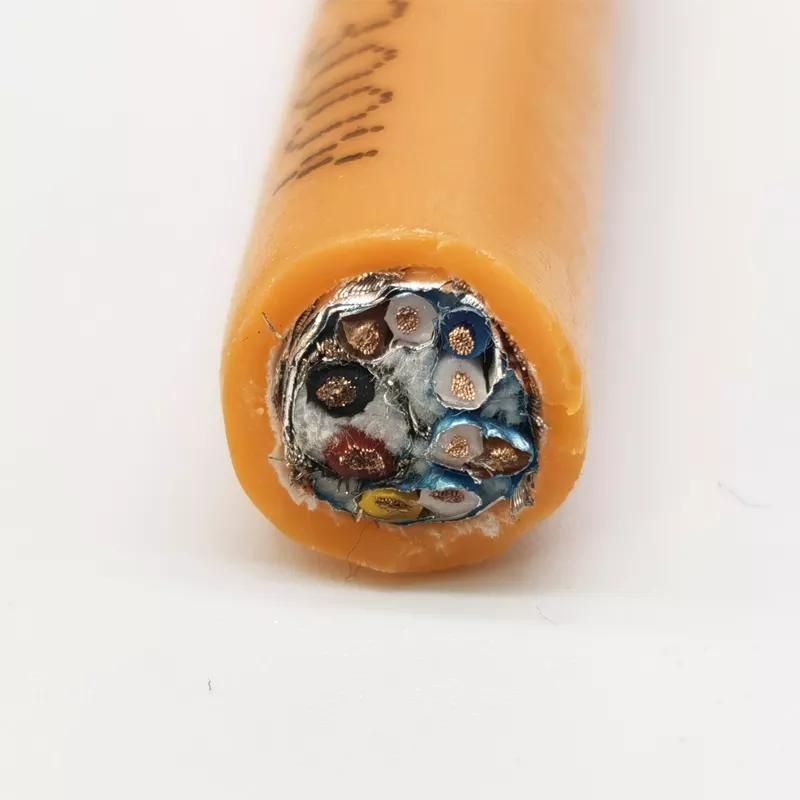

6fx8002-5DN46-1ah0 Cable Power Oil Resistance Cable 4X4+2X1.5c C

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：CFC,Halogen,Silicone-Free
  • Material Shape：Round Wire

Base Info

  • Model NO.：6FX8002-5DN46-1AH0 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item6FX8002-5DN46-1AH0 Cable Power Oil Resistance Cable 4x4 + 2x1.5C CConductor

Bare copper strands

InsulationCFC/halogen/silicone-freeOuter sheathPURTest voltage, rms Power conductors4.0 kVTest voltage, rms Signal conductors2.0 kV Rated voltage U0/U 600 V/1000 VCore numberMulticores (As client's requirement)Operation with permanently installed cable-50 ...80 ºC
Module-end power connector 0 … 55°C,
Motor-end power connector -20 … 80°COperation with moving cable-20 ... 60 °C
Module-end power connector 0 … 55°CStorage-20 ... 80 °C
Module-end power connector -20 … 70°C,
Motor-end power connector -20 … 80°CSmallest bending radius (fixed installation)45.6 mmSmallest bending radius(flexible installation in a cable carriers)115.0 mmMaximum traversing velocity300 m/minApplicationSIEMENS MOTION CONNECT 800PLUS
