Low Capacity Hybrid Motor Connection Cable 0.6/1 Kv SL 875 C Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Tmpu
  • Insulation Material：Special Polymer
  • Material Shape：Round Wire

Base Info

  • Model NO.：SL 875 C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

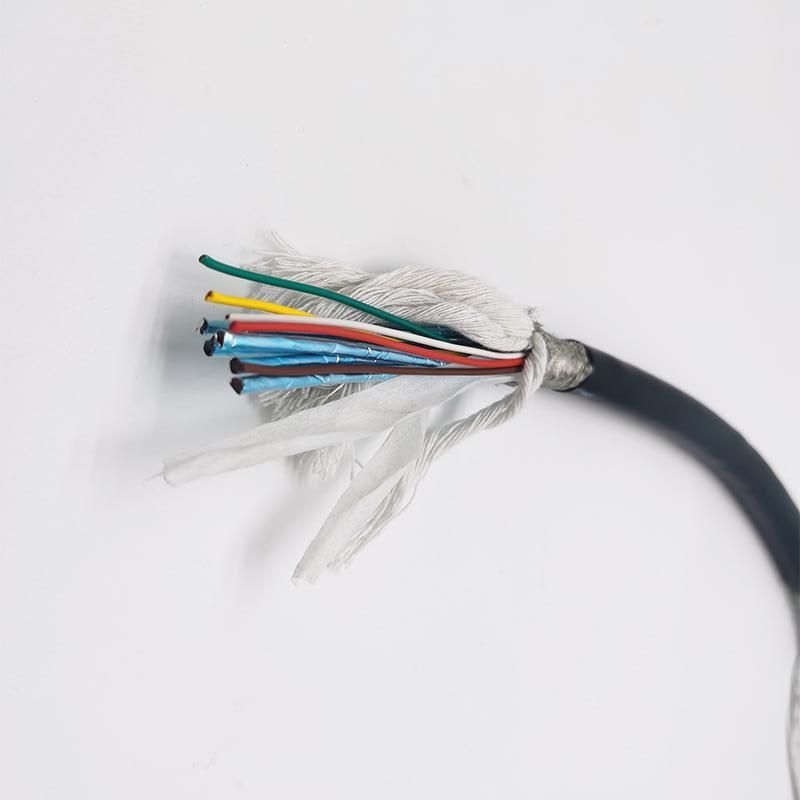

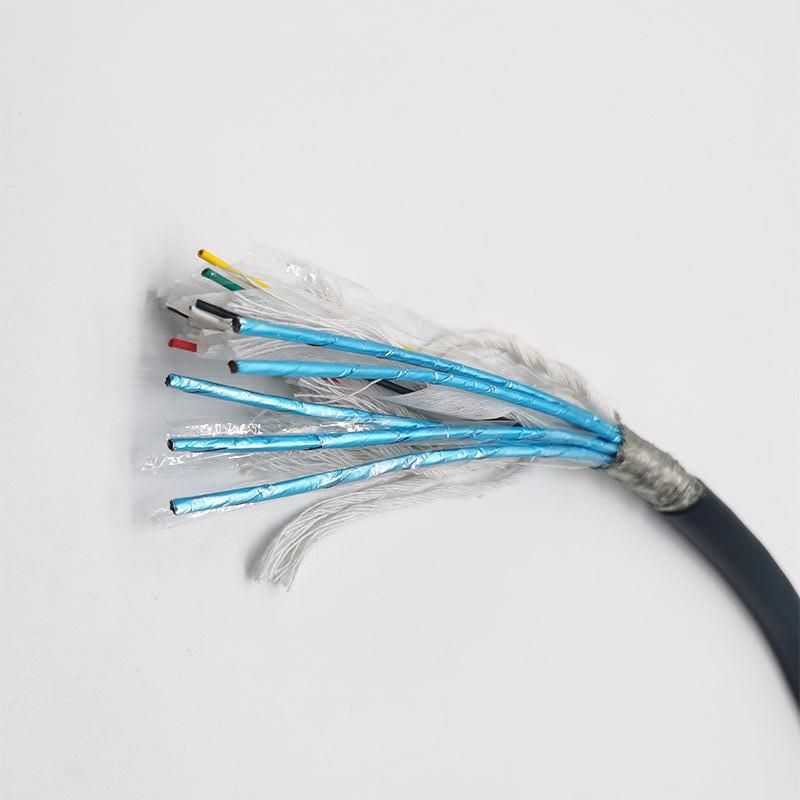

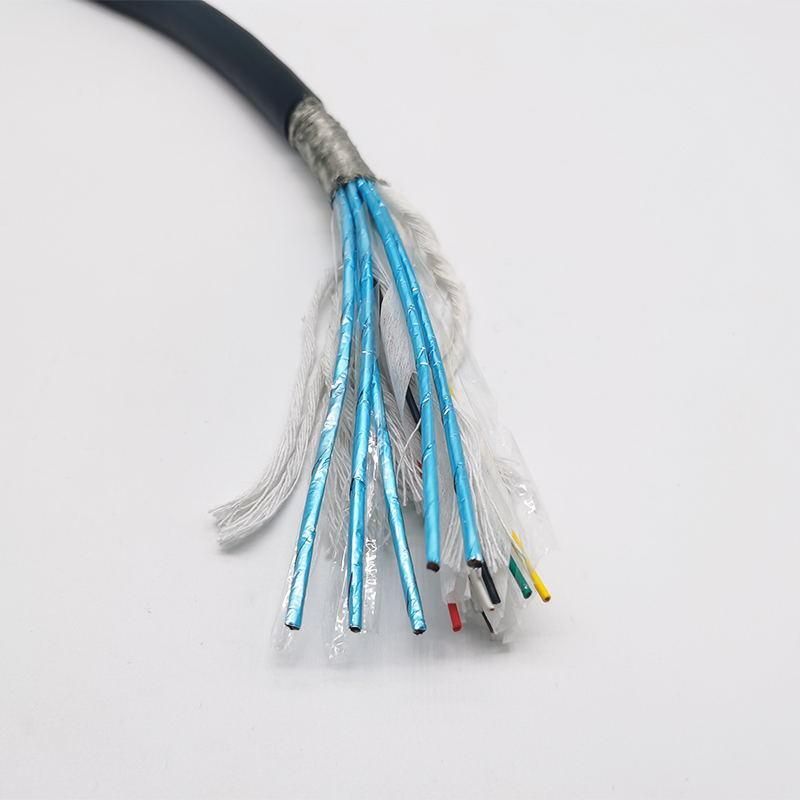

ItemLow Capacity Hybrid Motor Connection Cable 0.6/1 kV SL 875 C CableConductor

Bare copper strands

InsulationSpecial polymerStranding

Control cores pairwise,

item 087501 . . feedbackcores pairwise

item 087505 . . feedbackcores 0,09 mm² pairwise pairs with cores 0,24 mm² in layers optimally stranded

WrappingNon-woven tape resp. foilScreen

Elements with tinned copper braiding

item 087501 . . feedbackcores additional alu foil

WrappingNon-woven tape resp. foilStrandingScreened elements and supply cores in layers optimally strandedWrappingNon-woven tapeOuter sheathTMPUNominal voltageDIN VDE: 0.6/1 kVPeak operating voltageDIN VDE: control cores + feedbackcores max. 500 VTesting voltage

Supply cores:

core/core 4000 V

core/screen 4000 V



Control cores:

core/core 3000 V

core/screen 3000 V

Core numberMulticores (As client's requirement)Min. bending radius

Fixed laying: 5 x d

Flexible application: 10 x d

Continuously flexible: 12 x d

Temperature range

Fixed laying: -50/+90°C

Flexible application: -40/+90°C

Application

Hybrid motor connection cable with overall copper screen 0.6/1 kV for use as all-in-one cable solution in motor feedback systems. This hybrid cable with CSA approval is UL recognized and is suitable for cable tracks.
