• Model NO.：KX
• Material Shape：Round Wire
• Range of Application：Temperature Measurement
• Certification：ISO9001, CE
• Brand：Tankii
• Wire Type：K, J, T, E, N
• Dia：Customized
• Surface：Bright
• shape：round , flat
• item：K type PTFE insulated thermocouple extension wire
• Transport Package：Carton Box, Wooden Case
• Specification：Customized
• Trademark：TANKII
• Origin：Shanghai
• HS Code：74082200
• Production Capacity：1000tons,Year

Basic Info.

Model NO. KX Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE Brand Tankii Wire Type K, J, T, E, N Dia Customized Surface Bright shape round / flat item K type PTFE insulated thermocouple extension wire Transport Package Carton Box/ Wooden Case Specification Customized Trademark TANKII Origin Shanghai HS Code 74082200 Production Capacity 1000tons/Year

Product Description

Product Description
K type PTFE insulated thermocouple extension wire 24AWG

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.


Our mill mainly manufacture type KX,,EX,JX,TX,SC/RC,KCA,KCB  compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).


The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X:  Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C:  Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

Application:
1.Heating - Gas burners for ovens
2.Cooling - Freezers
3.Engine protection - Temperatures and surface temperatures
4.High temperature control - Iron casting

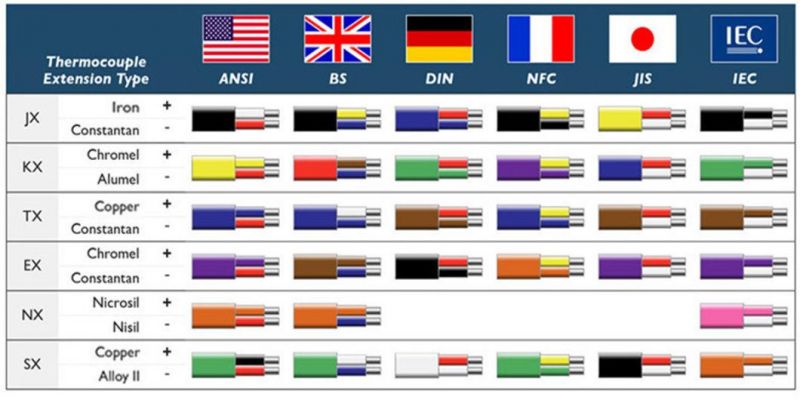

Color code for thermocouple cable:
