• Model NO.：VV32
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS
• Model：YJLV22
• Brand：Yifang
• No. of Core：1,2,3,4,5, or 3+1,4+1 Core
• Transport Package：Steel Wooden Drum
• Specification：16mm2--500mm2
• Trademark：Yifang
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Year

Basic Info.

Model NO. VV32 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS Model YJLV22 Brand Yifang No. of Core 1/2/3/4/5, or 3+1/4+1 Core Transport Package Steel Wooden Drum Specification 16mm2--500mm2 Trademark Yifang Origin Henan, China HS Code 8544492100 Production Capacity 5000km Per Year

Product Description

                   4 core multicore armored electric cable for 0.6/1kv


1. Conductor:

The conductor is the class 1 or class 2 the bare annealed copper wire or metallized copper wire, or bare aluminium wire or aluminium alloy; or the class 5 according to the IEC60228;


2. Insulation:

The thickness of PVC for 1.0/1kv is 1.0mm for 4/6/10/16mm2, 1.2mm for 25/35mm2, 1.4mm for 50/70mm2, 1.6mm for 95/120mm2, 1.8mm for 150mm2, 2.0mm for 185mm2, 2.2mm for 240mm2, 2.4mm for 300mm2, 2.6mm for 400mm2, 2.8mm for 500-800mm2;


3. The filler layer and inner covering of the multi-core cable:

wrapping and extruding layer are both accepted for the inner covering layer.


4. Armored material:
Steel wire, steel tape, aluminium wire or aluminium tape are all available for us.

5. Sheath: PVC or PE

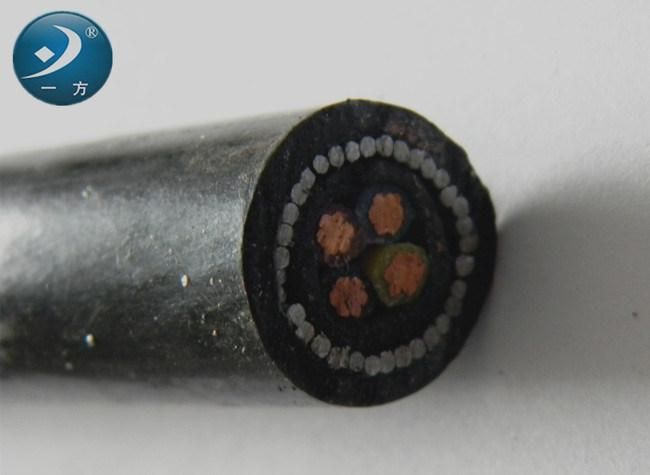

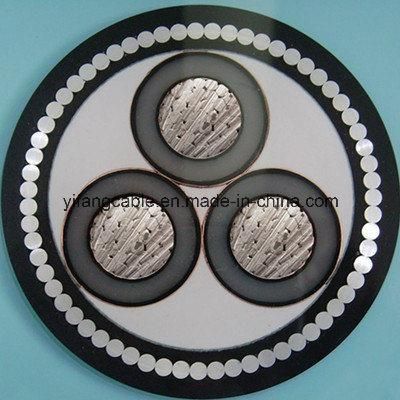

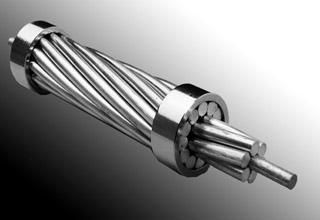

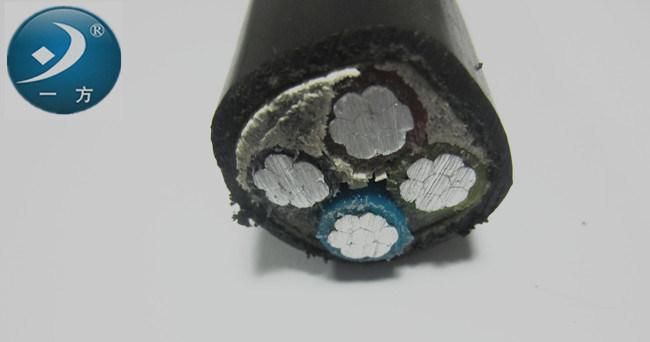

6. Picture show:



7. Company profile:

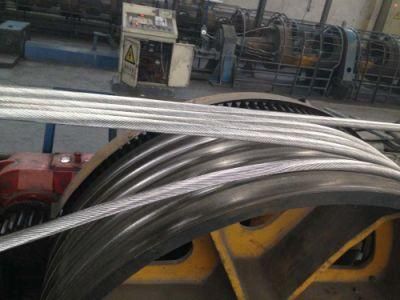

Yifang Electric Group Inc.(formerly Zhengzhou Yifang Cable Co.,Ltd) was established in 2001, whose main products are cables and wires . It is a large stock of high-tech enterprises with registration capital of 100 million RMB. The company has advanced and complete cable production equipment 150 sets. Technical capacity reached international advanced level, the annual production capacity achieve 1~1.5 billion RMB.

Welcome to China, welcome to Yifang Cable!
our website: yifangcable.en.made-in-china.com
