Cable IEC 60502-2 / NFC 33 220 18/30 (36) Kv 35 - 800mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV-18,30
- Wire Core Material：Red Copper Wire
- Certification：ISO
- Model：YJV
- Brand：Yifang
- Product Name：Cable IEC 60502-2 , NFC 33 220 18,30 (36) Kv 35 -
- Transport Package：Drum, Reel or According to Your Request
- Specification：IEC, BS, DIN, ASTM, NFC, JIS etc
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544462100
- Production Capacity：50, 000km Per Month
Description
Basic Info.
Model NO. YJV-18/30 Wire Core Material Red Copper Wire Certification ISO Model YJV Brand Yifang Product Name Cable IEC 60502-2 / NFC 33 220 18/30 (36) Kv 35 - Transport Package Drum, Reel or According to Your Request Specification IEC, BS, DIN, ASTM, NFC, JIS etc Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544462100 Production Capacity 50, 000km Per MonthProduct Description
Product DetailsCable IEC 60502-2 / NFC 33 220 18/30 (36) kV
The cable IEC 60502-2 or NF C 33-220 is intended for public distribution medium voltage HTA 18/30 kV.

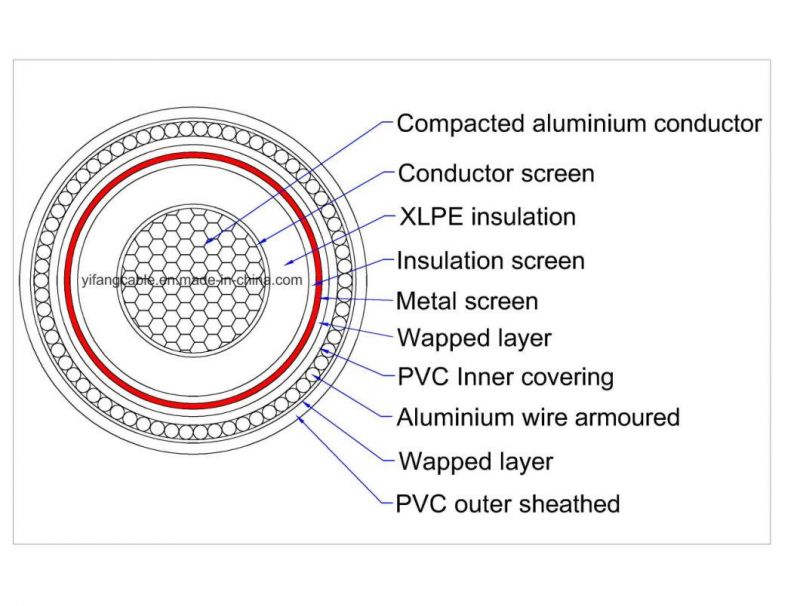

It consists of 1 non-armed phase conductor. A semiconductor ribbon is placed under the copper screen.
NSULATION
The crosslinking process of polyethylene guarantees:
Excellent resistance to temperature (90 ° C)
High mechanical strength
Excellent resistance to short circuits (250 ° C)
Very good resistance to weather
Product Parameters
| Sizes | Overall Dia.(mm) | Standard Length(m) |
| 1x35 | 31.0 | 1000 |
| 1x50 | 32.0 | 1000 |
| 1x70 | 34.0 | 1000 |
| 1x95 | 36.0 | 1000 |
| 1x120 | 37.0 | 1000 |
| 1x150 | 39.0 | 1000 |
| 1x185 | 41.0 | 1000 |
| 1x240 | 43.0 | 1000 |
| 1x300 | 46.0 | 1000 |
| 1x400 | 49.0 | 1000 |
| 1x500 | 52.0 | 1000 |
| 1x630 | 56.0 | 1000 |
| 1x800 | 60.0 | 1000 |
Product Details Show
