Yifang Mv Underground Power Cables Outdoor Energy BS7835 - 6.35/11kv 3 Core 35~400mm2 Swa
YIFANG ELECTRIC GROUP INC.- Application：Underground
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV32
- Wire Core Material：Copper or Aluminum
- Certification：ISO, CCC, CE
- Model：Yjv32
- Brand：Yifang
- Product Name1：Yifang Mv Underground Power Cables Outdoor Energy
- Product Name2：BS7835 - 6.35,11kv 3 Core 35~400mm2 Swa
- Transport Package：Coil, Drum, etc
- Specification：ISO ASTM ICEA DIN
- Trademark：YIFANG
- Origin：China
- HS Code：8544460120
- Production Capacity：500km,Month
Description
Basic Info.
Model NO. YJV32 Wire Core Material Copper or Aluminum Certification ISO, CCC, CE Model Yjv32 Brand Yifang Product Name1 Yifang Mv Underground Power Cables Outdoor Energy Product Name2 BS7835 - 6.35/11kv 3 Core 35~400mm2 Swa Transport Package Coil, Drum, etc Specification ISO ASTM ICEA DIN Trademark YIFANG Origin China HS Code 8544460120 Production Capacity 500km/MonthProduct Description
Product DetailsYifang MV Underground Power Cables Outdoor Energy BS7835 - 6.35/11kv 3 core 35~400mm2 SWA
Armoured 3-core cable with XLPE insualtion. Rated voltage 6.35/11 KV
STANDARDS
National : BS 7835
DESCRIPTION

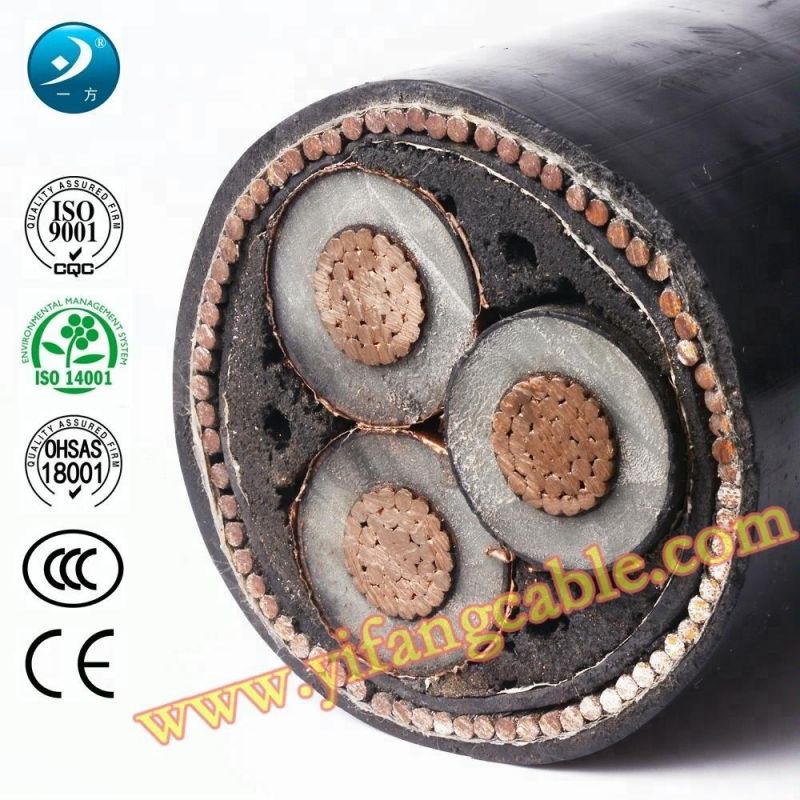

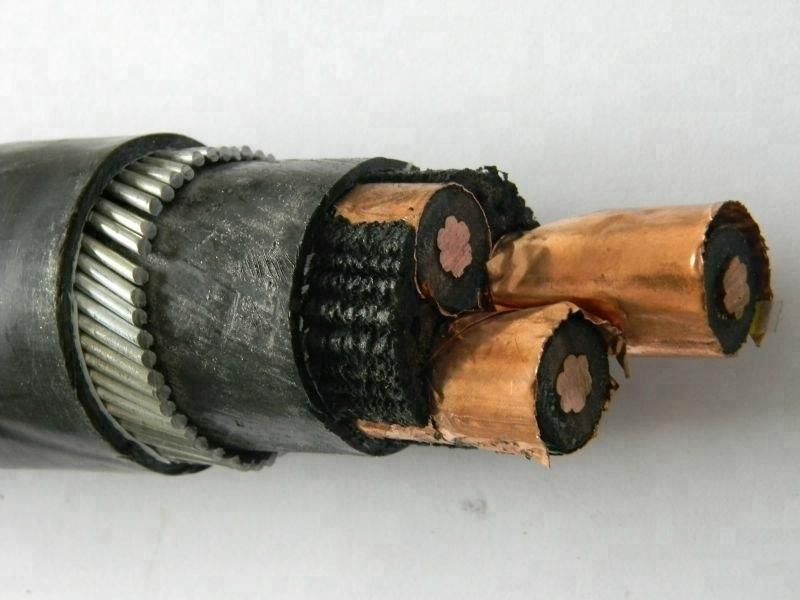

Electric cable with copper conductors, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper metallic screen for each core, LSF bedding, galvanized steel wires armour (SWA), LSF outer sheath
Application
suitable for installation in energy networks where for safety reasons Low Smoke and Halogen Free cables are specified. The cable is suitable for installation underground, in ducts or in air
Note: the cable is suitable for rated voltage 6/10 KV according to IEC 60502-2
Product Introduction
Product Parameters
| Sizes(mm2) | Overall Dia.(mm) | Weight(kg/km) | Rated Current(in soil,A) |
| 3x35(Cu) | 51.3 | 4658 | 186 |
| 3x50(Cu) | 54.1 | 5355 | 220 |
| 3x70(Cu) | 58.0 | 6311 | 269 |
| 3x95(Cu) | 62.1 | 7415 | 322 |
| 3x120(Cu) | 65.6 | 8479 | 366 |
| 3x150(Cu) | 69.3 | 9678 | 411 |
| 3x185(Cu) | 73.2 | 11093 | 463 |
| 3x240(Cu) | 80.4 | 14191 | 535 |
| 3x300(Cu) | 85.4 | 16457 | 602 |
| 3x400(Cu) | 93.0 | 20188 | 683 |
Product Details Show

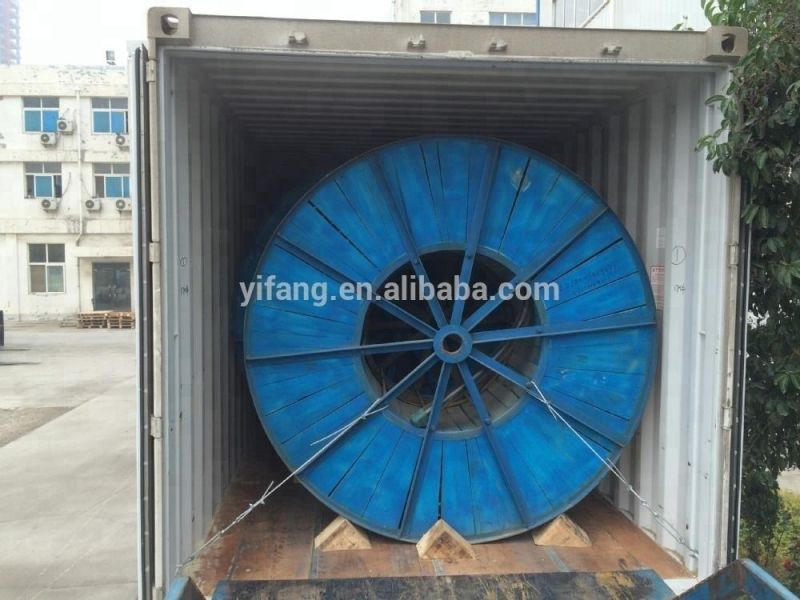

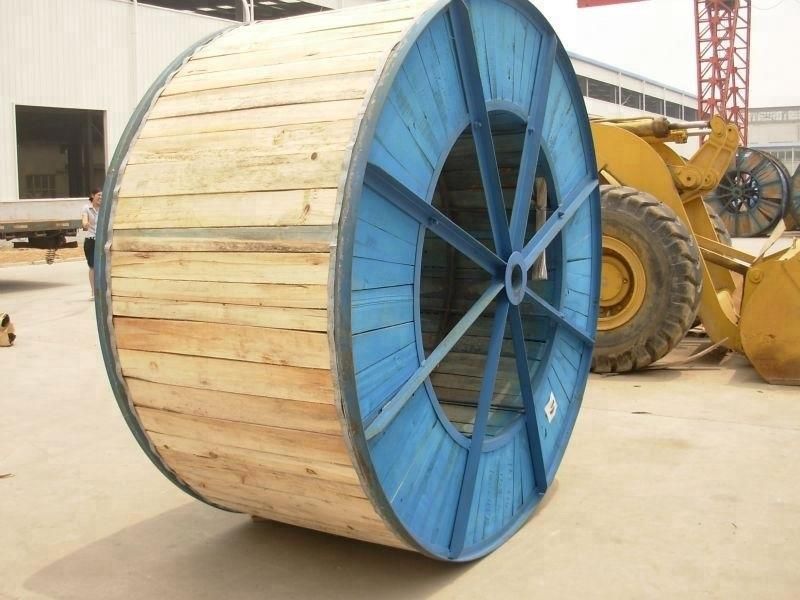

Product Package
