• Model NO.：KL-500
• Storage of Splice Result：4000 Results, 20 Parameter Per Result
• Battery Capacity：Typical 300 Cycles (Splice,Tube Heat with Inner Li
• Monitor：3.5 Inch TFT Color LCD Monitor
• Fiber Cleaved Length：8-16mm (Coating Diameter:250um)
• Dimension：25mm(L)×105mm(W)×113mm(H)
• Transport Package：Packed with Polyfoam, Double Packed with Brown Box
• Specification：CE; ISO9001
• Trademark：Softel
• Origin：Hangzhou, Zhejiang, China
• HS Code：85176229
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. KL-500 Storage of Splice Result 4000 Results, 20 Parameter Per Result Battery Capacity Typical 300 Cycles (Splice/Tube Heat with Inner Li Monitor 3.5 Inch TFT Color LCD Monitor Fiber Cleaved Length 8-16mm (Coating Diameter:250um) Dimension 25mm(L)×105mm(W)×113mm(H) Transport Package Packed with Polyfoam, Double Packed with Brown Box Specification CE; ISO9001 Trademark Softel Origin Hangzhou, Zhejiang, China HS Code 85176229 Production Capacity 1000PCS Per Month

Product Description

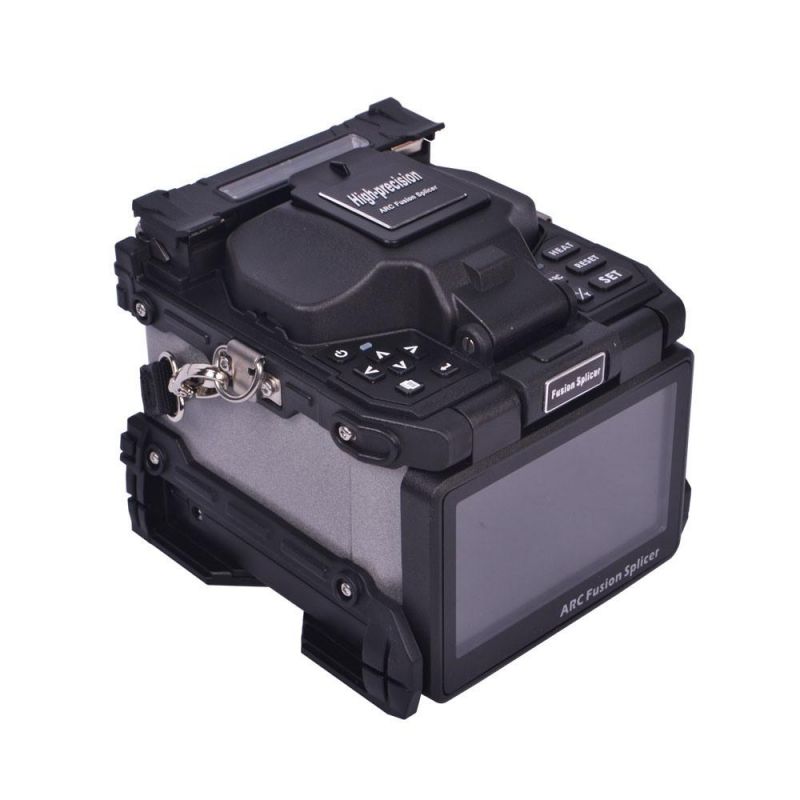

Portable Fiber Optical Fusion Splicer(KL-500)

·Product Display



-Typical Application

-Brief IntroIts powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX : Because of the compact configuration and precise mechanism, it can adapt to execrable environment; The novel fiber imaging system make the image clearer and exquisites; The real-time embedded OS provide friendly man machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long- time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.
-Characteristic

1.The world's smallest dual observation, tune core type welding machine
2.Weighing only 1.25 kg
3.3.5-inch color display, while observing the X-axis, Y-axis direction of the optical fiber
4.Optical magnification large, clearly visible core
5.Multiple core alignment method: core alignment cladding alignment manually aligned
6.Welding time 9 seconds 30 seconds heating time
7.Rich user interface, internal resistance, intelligent menu design
8.Furrow type wind cover, 15m / s under strong wind can carry splice
9. 5000 meters of altitude dial, weld quality assurance plateau
10. Typically, the cycle of operation 300



·Workshop


Applicable fibers	SM  MM  DS  NZDS
Fiber diameter	Cladding diameter:80-150μm;Coating diameter:100-1000μm
Fiber aligning method	MeticulousCoreCladManual
Actual average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Typical splicing time	Typical 9 sec (standard SM fiber)
Tube typical heating time	Typical 30 sec
Storage of splice result	4000 results, 20 parameter per result
Fiber image magnification	200X (X or Y view),50X  (X and Y view)
Battery capacity	Typical 300 cycles (splice/tube heat with inner Li-battery)
Monitor	3.5 inch TFT color LCD monitor
Power supply	AC 100-240V with AC adapter  inner Li-battery (5200mAH)
Dimension	25mm(L)×105mm(W)×113mm(H)
Fiber cleaved length	8-16mm (Coating diameter:250μm)
Fiber count	Single
Return loss	>60dB
Splicing mode	Auto Calibrate Normal Special
Splicing program	53 (templet), 40(user)
Protection sleeve length	60mm, 40mm
Tube heating program	9 (templet),24(user)
Tension test	2N
Electrode life	2500
Terminal	USB
Operating condition	0-5000m above sea level, -10-50° Max wind velocity of 15m/s
Weight	1.55Kg including battery
