• Model NO.：Drop Fiber Cable
• Wire Core Material：Steel
• Certification：CE, ISO
• Brand：Softel
• Apply for：Aerial
• Fiber Count：1,2,4,6,8 as Per Your Design
• Cable Type：Sm or Mm
• Fiber Type：9,125 (G657A2)
• Material of Jacket：MDPE,HDPE
• Fiber Optic Cable Tube：Central Loose Tube
• Model Name：Fiber Optic Cable
• Model No.：Gjyxch-8b6.A2
• Delivery Time：10 Days
• MOQ：2 Drum
• Transport Package：4km Wooden Drum
• Trademark：SOFTEL
• Origin：China
• HS Code：85176229
• Production Capacity：1000km Per Month

Basic Info.

Model NO. Drop Fiber Cable Wire Core Material Steel Certification CE, ISO Brand Softel Apply for Aerial Fiber Count 1,2,4,6,8 as Per Your Design Cable Type Sm or Mm Fiber Type 9/125 (G657A2) Material of Jacket MDPE/HDPE Fiber Optic Cable Tube Central Loose Tube Model Name Fiber Optic Cable Model No. Gjyxch-8b6.A2 Delivery Time 10 Days MOQ 2 Drum Transport Package 4km Wooden Drum Trademark SOFTEL Origin China HS Code 85176229 Production Capacity 1000km Per Month

Product Description

Self-supporting FTTH Indoor Fiber Cable












Products' details:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Characteristic:

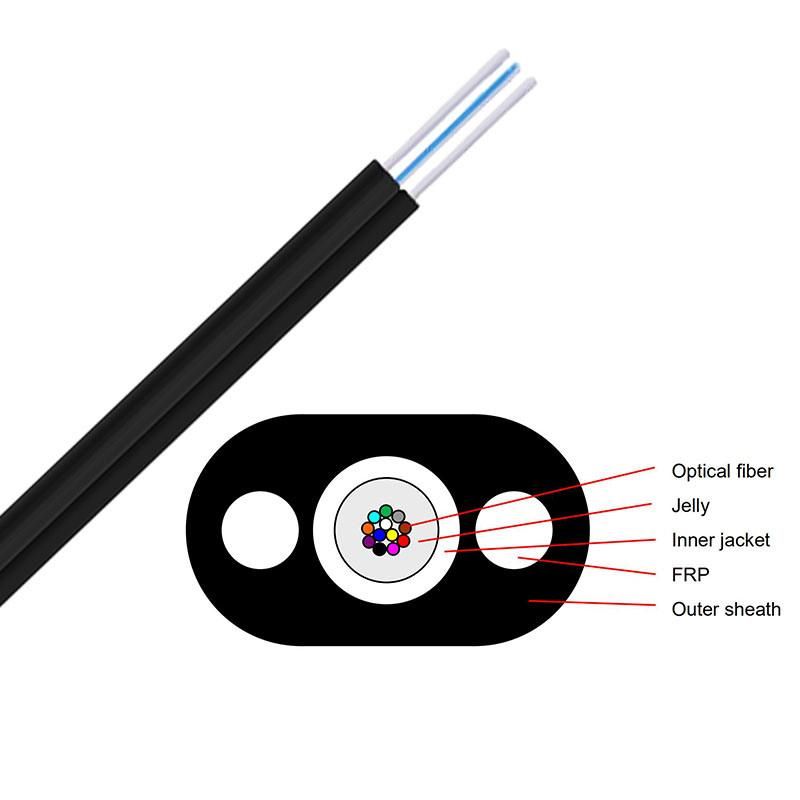

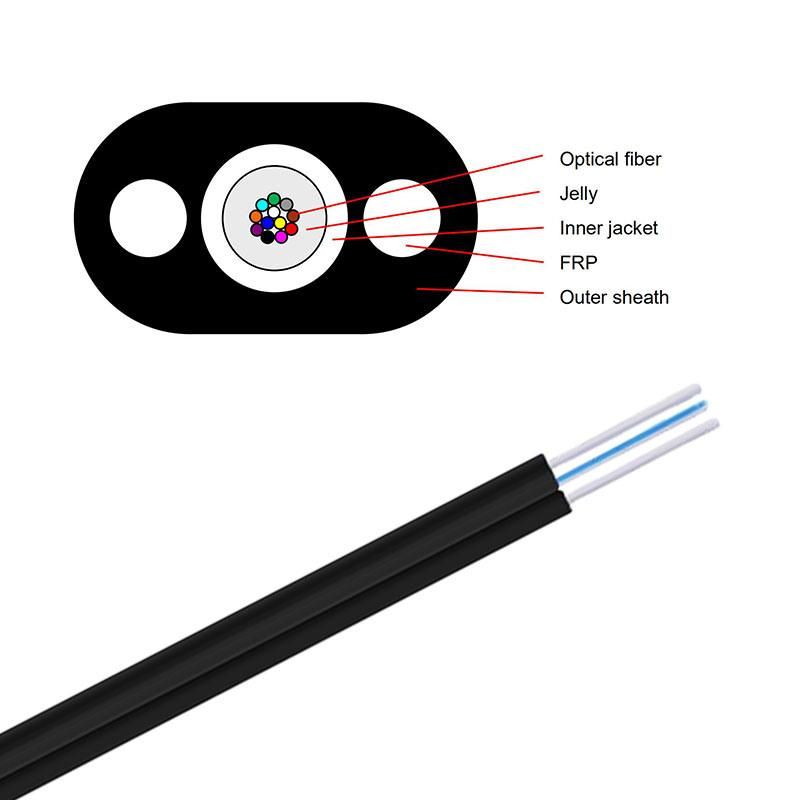

1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3 Single steel wire as the additional strength member ensure good performance of tensile strength.

4 Simple structure, light weight and high practicability.

5 Novel flute design, easily strip and splice, simplify the installation and maintenance.

6 Low smoke, zero halogen and flame retardant sheath.

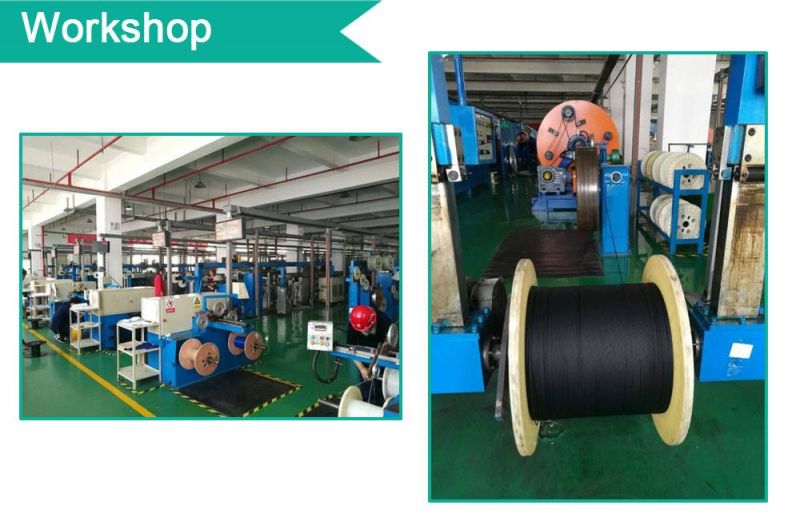

7 Storage / Operating Temperature: -20° C~+60° C. Workshop:

Item	Technology parameter
Cable type	Cable type GJYXFCH-8B6.a2
Cable specification	6.2×2.5
Fiber color	Blue, orange, green, brown, gray, white, red, black
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	6.2(±0.2)*2.5(±0.2)
Cable weight Kg/km	28.0
Min. bending radius mm	120
Min. bending radius(rip off the messenger wire) mm	10(static) 25(dynamic)
Attenuation dB/km	< 0.4 at 1310nm, <0.3 at 1550nm
Short tension N	600
Short crush N/100mm	2200
Operation temperature °C	-20~+60
