• Model NO.：1 Core Drop Cable
• Wire Core Material：Steel
• Certification：CE, ISO
• Model：Gjtxch-1c
• Brand：Softel ,OEM
• Apply for：Aerial
• Fiber Count：1,2,4,6,8 as Per Your Design
• Cable Type：Sm or Mm
• Fiber Type：9,125 (G657A2)
• Material of Jacket：MDPE,HDPE
• Fiber Optic Cable Tube：Central Loose Tube
• Model Name：Fiber Optic Cable
• Model No.：Gjyxch-8b6.A2
• Delivery Time：10 Days
• MOQ：2 Drum
• Transport Package：4km Wooden Drum
• Trademark：SOFTEL
• Origin：China
• HS Code：85176229
• Production Capacity：1000km Per Month

Basic Info.

Model NO. 1 Core Drop Cable Wire Core Material Steel Certification CE, ISO Model Gjtxch-1c Brand Softel /OEM Apply for Aerial Fiber Count 1,2,4,6,8 as Per Your Design Cable Type Sm or Mm Fiber Type 9/125 (G657A2) Material of Jacket MDPE/HDPE Fiber Optic Cable Tube Central Loose Tube Model Name Fiber Optic Cable Model No. Gjyxch-8b6.A2 Delivery Time 10 Days MOQ 2 Drum Transport Package 4km Wooden Drum Trademark SOFTEL Origin China HS Code 85176229 Production Capacity 1000km Per Month

Product Description

8 core fiber optic cable with Steel Strength Member

Products' details:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Characteristic:

1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3 Single steel wire as the additional strength member ensure good performance of tensile strength.

4 Simple structure, light weight and high practicability.

5 Novel flute design, easily strip and splice, simplify the installation and maintenance.

6 Low smoke, zero halogen and flame retardant sheath.

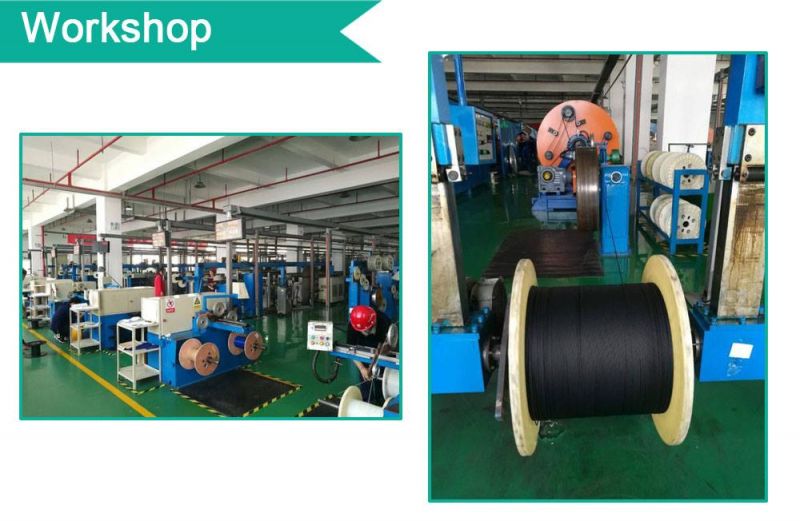

7 Storage / Operating Temperature: -20° C~+60° C. Workshop:

Item	Technology parameter
Cable type	Cable type GJYXFCH-8B6.a2
Cable specification	6.2×2.5
Fiber color	Blue, orange, green, brown, gray, white, red, black
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	6.2(±0.2)*2.5(±0.2)
Cable weight Kg/km	28.0
Min. bending radius mm	120
Min. bending radius(rip off the messenger wire) mm	10(static) 25(dynamic)
Attenuation dB/km	< 0.4 at 1310nm, <0.3 at 1550nm
Short tension N	600
Short crush N/100mm	2200
Operation temperature °C	-20~+60
