Torsade Cable 3X35+54.6+16mm2 Aluminum Overhead Cable ABC Conductor Preassemble Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：JKLY 3x35+54.6+16mm2
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：Jkly
  • Brand：Yifang Cable
  • Rated Voltage：0.6,1kv
  • Conductor：Aluminum
  • Sheath Color：Black
  • Cores：3X35+54.6+16mm2
  • Insulation Thickness：1.2mm
  • Country Exported：West Africa:Togo,Cote Diva,All Over The World
  • Standard：NFC 33 209 IEC 60502-2

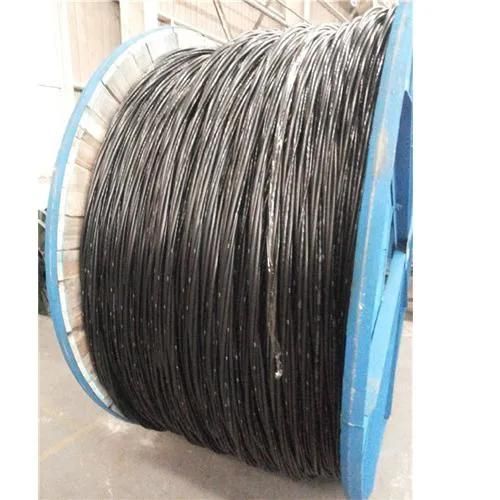

  • Transport Package：Wooden Drum
  • Specification：1.1m drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：300km Per Month

Description

TECHNICAL DATA SHEETCâble préassemblé torsadé 3x35+54,6+16mmm²NO.DESCRIPTIONUNITDATA1Standards IEC60502-1,NFC 33 209 Sizemm23x35+1x54.6+1x162Rated voltage (Uo/U)KV0.6/13Phase Core Construction  3.1Conductor   Number & Cross-section Areamm23x35 Material--Compacted Aluminum Wire Stranding wire number of conductorNos7 Approx. Diameter of conductormm6.6-7.53.2Insulation   Material--Black XLPE Nominal Thicknessmm1.6 Approx. Diameter of phase insulated coremm10.264Neutral Core Construction(insulated)  4.1Conductor   Number & Cross-section Areamm21x54.6 Material--Stranded Aluminum Alloy Wire Stranding wire number of conductorNos7 Approx. Diameter of conductormm9.454.2Insulation   Material--Black XLPE Nominal Thicknessmm1.6 Approx. Diameter of neutral insulated coremm12.655Street Lighting Core Construction  5.1Conductor   Number & Cross-section Areamm21x16 Material--Stranded Aluminum Wire Stranding wire number of conductorNos7 Approx. Diameter of conductormm5.05.2Insulation   Material--Black XLPE Nominal Thicknessmm1.2 Approx. Diameter of lighting insulated coremm7.56Approx. Dia. Of complete cablemm27.77Approx. weight of complete cable per kmKg6788Max. Conductor DC resistance at 20 °C   Phase conductorOhm/km0.868 Street lighting conductorOhm/km1.919Tensile strengh of neutral conductorKN16.6
