• Model NO.：battery cable
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, SGS
• Brand：OEM
• Standards：SAE J-1127, SAE J-1128
• Voltage：600V
• Insulation Temperature：105 C, 80 C
• Transport Package：500m Per Roll or as Your Requirement
• Specification：1sqmm to 120sqmm
• Trademark：OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：1000km,Month

Basic Info.

Model NO. battery cable Range of Application Flame Retardant Certification ISO9001, CCC, SGS Brand OEM Standards SAE J-1127, SAE J-1128 Voltage 600V Insulation Temperature 105 C, 80 C Transport Package 500m Per Roll or as Your Requirement Specification 1sqmm to 120sqmm Trademark OEM Origin China HS Code 8544492100 Production Capacity 1000km/Month

Product Description

Automotive Primary Wire

Hongda Wire and Cable offers a wide selection of Automotive Primary Wire. Primary auto wire is designed for many different automotive environments and to endure the harsh conditions of a variety of automotive applications. Allied's automotive wiring ranges from commercial to recreational vehicles.

Our Primary Wire is top of the line and has excellent features. All of Hongda's primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products in our inventory include, SXL, GXL, TXL, GPT, TWP and HDT. While some primary wire is rated for general use, such as circuit wiring, others are used in more specific scenarios, such as GXL which is mostly used in trucks and trailers. SXL wire is used in applications that have a need for high heat resistance and high temperature performance. It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C. We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG to 4/0 AWG.

GPT Automotive Primary Wire

Type GPT Wire (PVC)
Automotive Primary Wire

Type GPT Wire Features:

• Conductor: Bare Copper
• Insulation: Polyvinylchloride (PVC)
• Options: GPT wire is available in solid colors and stripes with optional custom printing and/or numbering

Type GPT Wire Ratings and Approvals:

• Temperature Range: -40°C to +80°C
• Meets Ford (M1L-56A) and Chrysler (MS-3450) specifications

GPT Automotive Wire Applications:

• Type GPT wire may be used whenever SAE J-1128 specifies general circuit wiring

*Available in drumpacks on many sizes

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec
GPT-22	22	7/30	0.023	0.0760	3.90	SAE J-1128
GPT-20	20	7/28	0.023	0.0840	6.20	SAE J-1128
GPT-18	18	16/30	0.023	0.0930	8.30	SAE J-1128
GPT-16	16	19/29	0.023	0.1020	11.50	SAE J-1128
GPT-14	14	19/27	0.023	0.1180	16.80	SAE J-1128
GPT-12	12	19/25	0.026	0.1410	25.20	SAE J-1128
GPT-10	10	19/23	0.031	0.1780	40.00	SAE J-1128
GPT-8	8	19/21	0.037	0.2180	63.00	SAE J-1128



GXL Automotive Primary Wire

Type GXL Wire - Thin Wall (XLP)
Automotive Primary Wire

Type GXL Wire Construction:

• Conductor: Bare Copper
• Insulation: Thin wall Cross-linked Polyethylene (XLPE)
• Colors & Print Options: Available in solid colors or with stripes, as well as optional custom printing and/or numbering.

Type GXL Wire Features:

• GXL Wire is intended for use in engine compartments where higher heat resistance is required according to SAE J-1128.
• Recommended temperature range for GXL Wire is -51°C to +125°C.
• Available in drumpacks on many sizes
• Also meets Ford (M1L-85B) and Chrysler (MS-8900) specifications

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec	Ford Spec	Chrysler Spec
GXL-20	20	7/28	0.023	0.0840	6.00	SAE J-1128	M1L-85B	MS-8900
GXL-18	18	16/30	0.023	0.0940	8.00	SAE J-1128	M1L-85B	MS-8900
GXL-16	16	19/29	0.023	0.1040	11.50	SAE J-1128	M1L-85B	MS-8900
GXL-14	14	19/27	0.023	0.1160	16.00	SAE J-1128	M1L-85B	MS-8900
GXL-12	12	19/25	0.026	0.1410	24.00	SAE J-1128	M1L-85B	MS-8900
GXL-10	10	19/23	0.031	0.1740	37.00	SAE J-1128	M1L-85B	MS-8900
GXL-08	8	19/21	0.037	0.2180	68.00	SAE J-1128	M1L-85B	MS-8900



Automotive Battery Cable

Automotive Battery Cable can be used in a variety of applications and is supplied to a number of industries. Allied offers battery cables SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler specifications.  Battery wire also comes in a variety of AWG sizes.

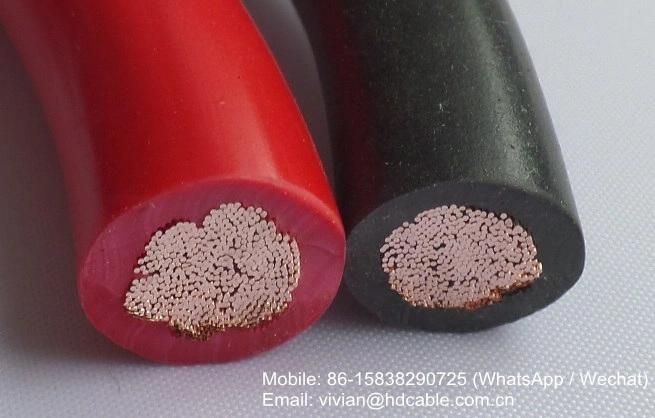

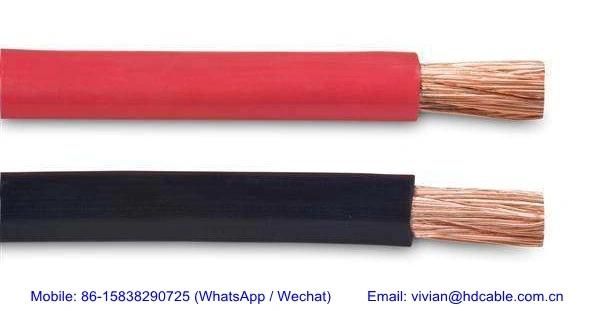

Hongda's battery cable features bare copper conductors and is available in standard battery circuit black and red.

SGT cable can be used in starter or battery ground circuits. It comes with Polyvinylchloride (PVC) insulation and can withstand temperatures up to 105ºC. Flex SGT wire is available with higher stranding.

STX wire or SGX wire can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed. It has Cross-Linked Polyethylene (XLPE) insulation and can withstand temperatures up to 125ºC. Contact your salesperson for any additional questions on all types of automotive battery cable.

SGT Automotive Battery Cable

Type SGT
Automotive Starter, Ground or Battery Cable

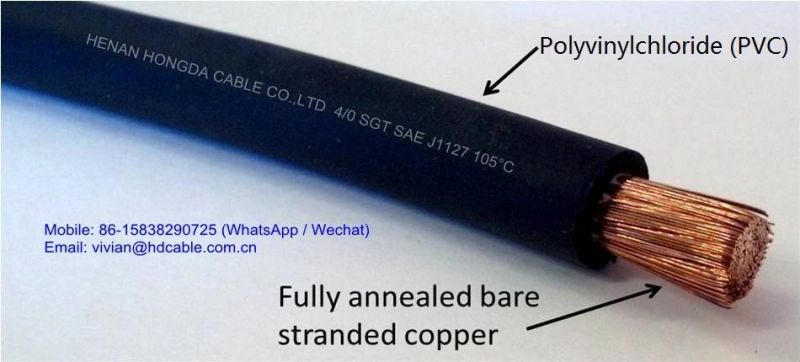

SGT Battery Cable Construction:

• Conductor: Bare copper
• Insulation: Polyvinylchloride (PVC)
• Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available.
• Stranding Options: SGT Cable is available with higher stranding.

SGT Battery Cable Applications:

• Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.
• Recommended temperature range is -40°C to +105°C.
• Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450) specifications

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec	Ford Spec	Chrysler Spec
SGT-6	6	37/.0260	0.060	0.3050	137.00	SAE J-1127	M1L-56A	MS-3450
SGT-4	4	61/.0250	0.065	0.3500	168.00	SAE J-1127	M1L-56A	MS-3451
SGT-2	2	133/.0218	0.065	0.4400	258.00	SAE J-1127	M1L-56A	MS-3452
SGT-1	1	133/.0243	0.065	0.4800	322.00	SAE J-1127	M1L-56A	MS-3453
SGT-1/0	1/0	133/.0275	0.065	0.5250	431.00	SAE J-1127	M1L-56A	MS-3454
SGT-2/0	2/0	133/.0309	0.065	0.5750	497.00	SAE J-1127	M1L-56A	MS-3455
SGT-3/0	3/0	361/.0210	0.078	0.6610	603.00	SAE J-1127	M1L-56A	MS-3456
SGT-4/0	4/0	361/.0239	0.078	0.7260	779.00	SAE J-1127	M1L-56A	MS-3457



SGX Automotive Battery Cable

Type SGX Wire
Automotive Battery Cable
Primary Wire

Type SGX Battery Cable Construction:

• Conductor: Bare copper
• Insulation: Cross-Linked Polyethylene (XLPE)
• Options: Available in stranded battery circuit colors of black and red with optional custom printing available

Type SGX Cable Features:

• Can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed.
• Meets the requirements of SAE J-1127
• SGX wire has a recommended temperature range of -40°C to +125°C

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec
SGX-6	6	133/0.0137	0.06	0.3050	107.00	SAE J-1127
SGX-4	4	133/0.0170	0.065	0.3750	153.00	SAE J-1127
SGX-2	2	133/0.0220	0.065	0.4380	248.00	SAE J-1127
SGX-1	1	259/0.0177	0.065	0.4800	308.00	SAE J1127
SGX-1/0	1/0	1026/0.010	0.065	0.5250	383.00	SAE J-1127
SGX-2/0	2/0	1254/30	0.065	0.5750	470.00	SAE J-1127
SGX-3/0	3/0	1615/30	0.078	0.6540	589.00	SAE J-1127
SGX-4/0	4/0	2052/.0100	0.078	0.7060	766.00	SAE J-1127
