Fiber Optic Cable -Figure 8 Self-Supporting Cable (GYTC8S)
DONGGUAN TW-SCIE CO., LTD.- Type：Single-mode Fiber
- Connection Structure：SC
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
- Core：Multicore
- Certification：RoHS, UL, ISO9001
Base Info
- Model NO.：GYTC8S
- Brand：OEM
- Sheath Material：PC
- Place of Origin：China (Mainland)
- Brand Name：Tw-Scie or OEM
- Model Number：GYTC8S
- Installation Style：Aerial
- Brand Name of Fiber：Corning, Yofc, ..as Your Requirement
- Loose Tube Material：PBT with Jerry
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE , LSZH
- Outer Sheath Color：Black
- Armour Material：Corrugated Steel Tape

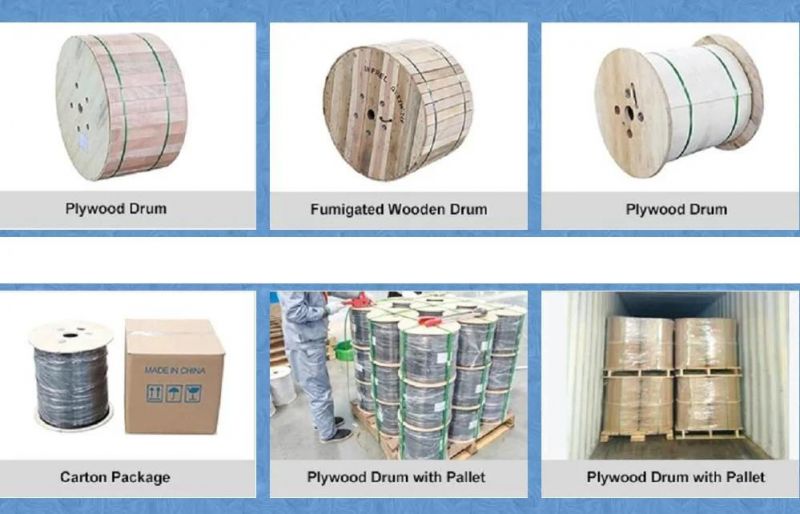

- Transport Package：Wooden Drum
- Specification：ROHS, CE
- Trademark：TW-SCIE or OEM
- Origin：Guangdong Dongguan
- HS Code：854470000
- Production Capacity：200km Per Day
Description
Temperature Range(ºC)Operation -40ºC - +70ºC Installation -10ºC - +50ºC Storage -40ºC - +70ºC
Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer's requirements.
Cable Performance
Internetional exporting experiences more than 10 years. If you have any questions about packing or shipping, we can offer you our best services. Inculding firming the packing or arranging the shipping with shipping company.
Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer's requirements.
Cable Performance
| Item | Testing | Test Method | Test Result |
| 1 | Tensile strength IEC 60794-1-E1 | Long term: 2500N Short term: 4950N Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
| 6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours | No compound flow |
Internetional exporting experiences more than 10 years. If you have any questions about packing or shipping, we can offer you our best services. Inculding firming the packing or arranging the shipping with shipping company.
