• Model NO.：SFX-50-3
• Wire Core Material：Sc
• Certification：ISO, RoHS, CCC, UL, VDE
• Model：Sfx-50-3
• Brand：Yuanda
• Transport Package：Pallet,Carton,Tray,Reel
• Specification：1,0.92
• Trademark：Yuanda
• Origin：Wuxi, China
• HS Code：8544492100
• Production Capacity：1000km,Day

Basic Info.

Model NO. SFX-50-3 Wire Core Material Sc Certification ISO, RoHS, CCC, UL, VDE Model Sfx-50-3 Brand Yuanda Transport Package Pallet/Carton/Tray/Reel Specification 1/0.92 Trademark Yuanda Origin Wuxi, China HS Code 8544492100 Production Capacity 1000km/Day

Product Description

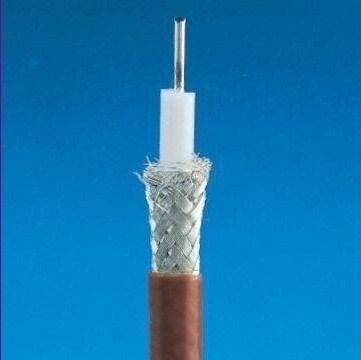

Silver-plated copper coaxial cable for communication

Technical Data:

1. Operating temperature range: (-65~165)° C

2. Inner conductor: Silver-plated copper

3. Outer conductor: Tinned copper braid outer conductor of the overall dip tin

4. Insulation: PTFE

5. Jacket: FEP/PVC/LSZH

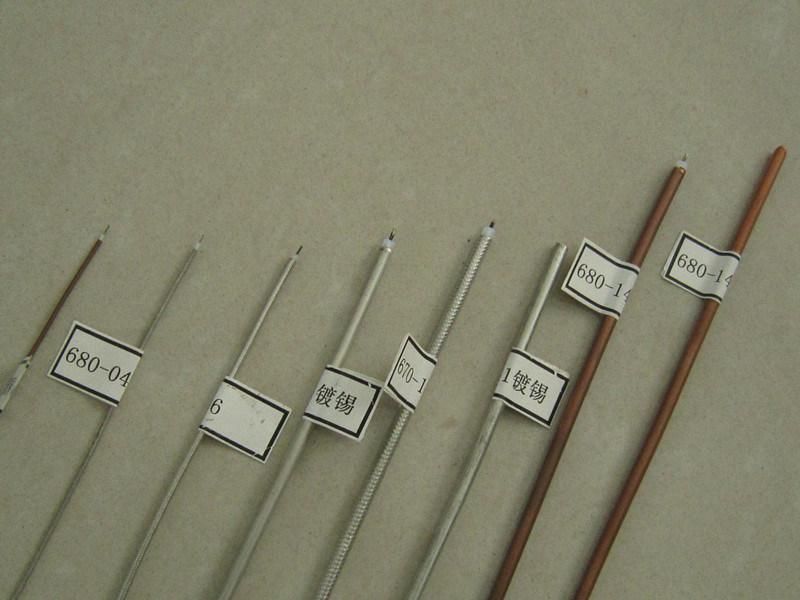

6. Application and features: Semi-flexible coaxial cable with good shielding, the use of high frequency, standing wave ratio is small, power, reliability and other characteristics, as opposed to semi-rigid cable with repeated bending function for the black box of internal connections, mobile base station, delay lines, radio equipment and other electronic devices.


Cable structure and key performance data:


1. Inner conductor number/diameter (mm): Sc1/0.92

2. Nominal insulation OD (mm): 2.98

3. Nominal diameter of outer conductor (mm): 3.58

4. Nominal Feature Impedance (Ω ): 50

5. Attenuation constant ≤ DB/100m:
0.5GHz: 0.35
1GHz: 0.45
5GHz: 1.20

6. Return Loss ≥ DB:
0.5GHz: 30
5GHz: 23

7. Maximum bending mandrel diameter (mm): 11

8. Test Voltage (kv): 5


Notes:

1. Sc: Silver-plated copper wire
Sccs: Silver-plated copper clad steel wire

2. According to customer requirements characteristic impedance of 35Ω , 37.5Ω , 42Ω , 75Ω And 100Ω Cable, etc., while according to the customer asks for a PVC or FEP jacket.
