• Model NO.：SFX-50-2-1
• Wire Core Material：Sccs(Silver-Plated Copper Clad Steel Wire)
• Certification：ISO, RoHS, CCC, UL, VDE
• Model：Sfx-50-2-1
• Brand：Yuanda
• Transport Package：Pallet,Carton,Tray,Reel
• Specification：ISO9001, UL, CCC, RoHS, VDE
• Trademark：Yuanda
• Origin：Wuxi, China
• HS Code：8544492100
• Production Capacity：1000km,Day

Basic Info.

Model NO. SFX-50-2-1 Wire Core Material Sccs(Silver-Plated Copper Clad Steel Wire) Certification ISO, RoHS, CCC, UL, VDE Model Sfx-50-2-1 Brand Yuanda Transport Package Pallet/Carton/Tray/Reel Specification ISO9001, UL, CCC, RoHS, VDE Trademark Yuanda Origin Wuxi, China HS Code 8544492100 Production Capacity 1000km/Day

Product Description

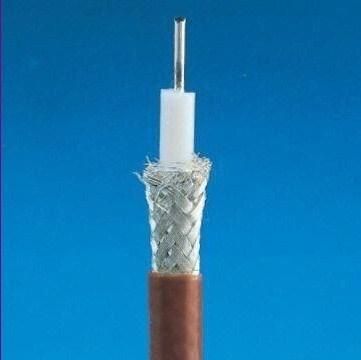

PVC insulation semi-flexible coaxial cable for communications

Technical Data:

1. Operating temperature range: (-65~165)° C

2. Inner conductor: Silver-plated copper clad steel wire

3. Outer conductor: Tinned copper braid outer conductor of the overall dip tin

4. Insulation: PTFE

5. Jacket: FEP/PVC/LSZH

6. Application and features: Semi-flexible coaxial cable with good shielding, the use of high frequency, standing wave ratio is small, power, reliability and other characteristics, as opposed to semi-rigid cable with repeated bending function for the black box of internal connections, mobile base station, delay lines, radio equipment and other electronic devices.


Cable structure and key performance data:

1. Inner conductor number/diameter (mm): Sccs1/0.51

2. Nominal insulation OD (mm): 1.68

3. Nominal diameter of outer conductor (mm): 2.18

4. Nominal Feature Impedance (Ω ): 50

5. Attenuation constant ≤ DB/100m:
0.5GHz: 0.55
1GHz: 0.78
5GHz: 1.87

6. Return Loss ≥ DB:
0.5GHz: 28
5GHz: 23

7. Maximum bending mandrel diameter (mm): 6

8. Test Voltage (kv): 3


Notes:

1. Sc: Silver-plated copper
Sccs: Silver-plated copper clad steel wire

2. According to customer requirements characteristic impedance of 35Ω , 37.5Ω , 42Ω , 75Ω And 100Ω Cable, etc., while according to the customer asks for a PVC or FEP jacket.

Our main products are as follows:
Automotive cable that meet the national standard, Japanese standard, American standard, German standard, France and other countries' standards, etc.. Coaxial cables that are widely used in various fields of communication systems. Cables that suitable for motor, railway, urban rail and rolling stock. Electronic cable and sleeves that widely used in electronics, electrical appliances, household appliances instruments etc.. Cables used in special fields like photovoltaic, nuclear power, aviation and ships. Our products involved in cross-industry, many fields.

Our main customers are as follows:
Shanghai Sanzhi, Delphi, Lear-stec and Continental corporation that matching Ashkenazi vehicle; THB Group and Ingersoll Rand eytc. ewire harness corporation that matching European and American vehicle; as well as Dell, Lenovo, Huawei and other matching communication cable customers and Panasonic, Siemens, Midea, Gree and other electronic cable customers.

If you are interested in our products, please contact with us! Also, you can tell us your requirements, and we can produce for you.
