• Model NO.：KX-GGP
• Material Shape：Round Wire
• Range of Application：Temperature Measuring
• Certification：ISO9001, CE, RoHS, VDE
• Brand：Fongming
• Conductor：Ni-Cr ,Ni-Si
• Insulation：Fiberglass
• Braided：Fiberglass
• Color：Positive White with Green Stripe Negative White
• Size：2*26-2*14AWG
• Shield：Fiberglass Braid
• Jacket：Silicone Rubber with High Temperature
• Transport Package：Cartons and Pallet
• Specification：2*26-2*14AWG
• Trademark：Fongming
• Origin：P. R China, Yangzhou
• HS Code：8544492100
• Production Capacity：3000km Per Month

Basic Info.

Model NO. KX-GGP Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, RoHS, VDE Brand Fongming Conductor Ni-Cr ,Ni-Si Insulation Fiberglass Braided Fiberglass Color Positive White with Green Stripe Negative White Size 2*26-2*14AWG Shield Fiberglass Braid Jacket Silicone Rubber with High Temperature Transport Package Cartons and Pallet Specification 2*26-2*14AWG Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per Month

Product Description

factory price K Type fiberglass  insulation  fiberglass jacket  tinned shield thermocouple extension cable

Product Description:
Name:Thermocouple wire
Model:KX Type
Size:2*26-2*14AWG

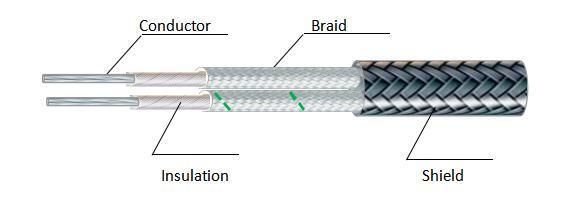

Structure
Conductor:Ni-Cr ,Ni-Si
Inner Insulation:Fiberglass Wrapping and Silicone Resin Coating
Outer Insulation:Fiberglass Braid  and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White
Shield:Stainless Steel

Model


Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Inner Insulation Thickness (mm)	Diameter (mm)	Outer Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.13	0.74	0.2	1.1	0.2	1.5±0.2*2.4±0.2
2*24	7/0.2	0.6	0.13	0.86	0.2	1.3	0.2	1.7±0.2*2.8±0.2
2*22	7/0.254	0.76	0.13	1.02	0.2	1.4	0.2	1.8±0.2*3.0±0.2
2*20	7/0.32	0.96	0.13	1.22	0.2	1.6	0.2	2.0±0.2*3.4±0.2
2*18	7/0.39	1.17	0.13	1.43	0.2	1.8	0.2	2.2±0.2*3.8±0.2
2*16	19/0.3	1.5	0.13	1.76	0.2	2.2	0.2	2.6±0.2*4.6±0.2
2*14	19/0.37	1.85	0.13	2.11	0.2	2.5	0.2	2.9±0.2*5.2±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
