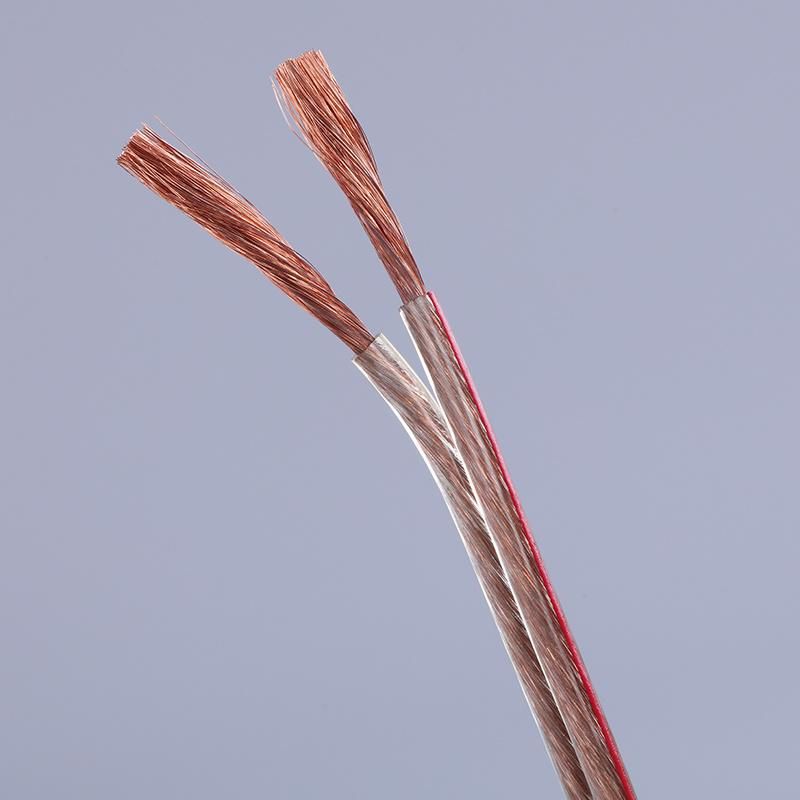

High Quality Bare Cooper Conductor 2 Cores Transparent Speaker Audio Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Bus Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Color：Red and Black
- Inner Conductor：Sqmm
- Export Length：100m,Roll, 305m,Drum
- Core：2 Cores
- Cable Jacket Material：PVC
- Transport Package：Carton Box, Pallet
- Specification：PVC Insuluation speaker cable
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491900
- Production Capacity：30000boxes,Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Color Red and Black Inner Conductor Sqmm Export Length 100m/Roll, 305m/Drum Core 2 Cores Cable Jacket Material PVC Transport Package Carton Box, Pallet Specification PVC Insuluation speaker cable Trademark Risun Origin Zhejiang, China HS Code 8544491900 Production Capacity 30000boxes/MonthProduct Description
High Quality Bare Cooper Conductor 2 Cores Transparent Speaker Audio Cable
PRODUCT SPECIFICATION:
Description:
Flexible LOUD SPEAKER CABLE cable are used in connecting for audio appliances,home appliances,small eectric tools and instruments.
connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier.
Structure:
10AWG, 12AWG, 14AWG, 16AWG, 18AWG,20AWG,22AWG
Conductor Material:
OFC:Oxygen Free Copper
TC:Tinned Copper
BC:Bare Copper

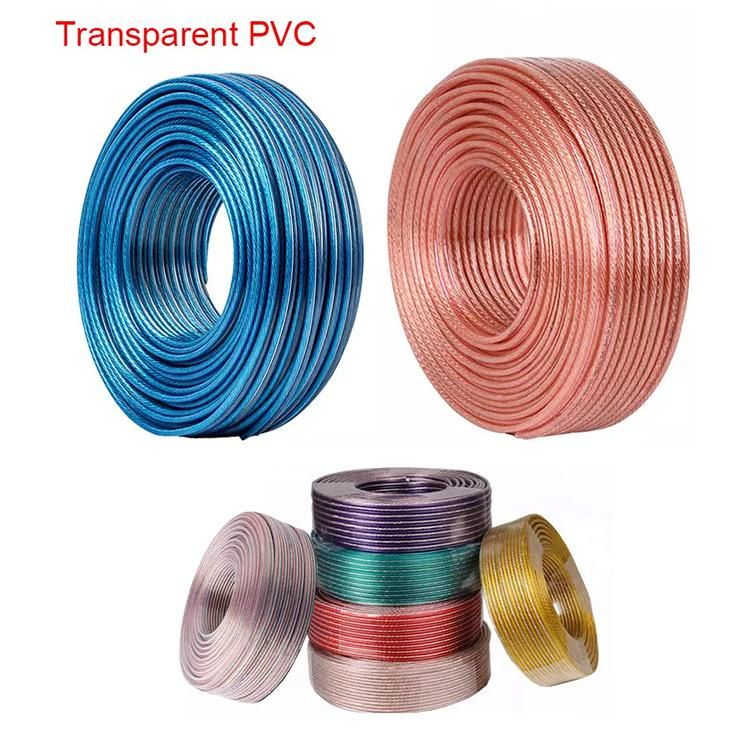

Jacket Material:
Transparent PVC
COMMON SPECIFICATIONS FOR REFERENCE:
Normal area (mm²) | Specification | Diameter (mm) | Weight(kg/km) |
| 2x0.24mm2 | 2x30/0.10 | 2.1x4.3 | 14 |
| 2x0.4mm2 | 2x50/0.10 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x64/0.10 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x80/0.10 | 2.6x5.3 | 25 |
| 2x0.75mm2 | 2x96/0.10 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x100/0.10 | 2.8x5.5 | 28 |
| 2x1mm2 | 2x7x18/0.10 | 3.1x6.1 | 34 |
| 2x1.5mm2 | 2x7x27/0.10 | 3.4x6.8 | 45 |
| 2x2mm2 | 2x7x36/0.10 | 3.8x7.5 | 58 |
| 2x2.5mm2 | 2x7x46/0.10 | 4.0x8.1 | 70 |
| 2x4mm2 | 2x7x72/0.10 | 4.6x9.3 | 100 |
| 2x6mm2 | 2x7x110/0.10 | 5.4x10.9 | 145 |
| 2x0.4mm2 | 2x13/0.20 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x16/0.20 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x19/0.20 | 2.6x5.2 | 24 |
| 2x0.75mm2 | 2x24/0.20 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x26/0.20 | 2.8x5.5 | 29 |
| 2x1mm2 | 2x32/0.20 | 2.9x5.8 | 33 |
| 2x1.5mm2 | 2x48/0.20 | 3.2x6.4 | 44 |
| 2x2mm2 | 2x64/0.20 | 3.4x6.9 | 55 |
| 2x2.5mm2 | 2x7x11/0.20 | 4.0x7.9 | 67 |
| 2x4mm2 | 2x7x18/0.20 | 4.6x9.2 | 100 |
| 2x6mm2 | 2x7x27/0.20 | 5.4x10.8 | 142 |
| 2x20AWG | 2x41/0.12 | 2.4x4.9 | 21 |
| 2x18AWG | 2x65/0.12 | 2.8x5.6 | 29 |
| 2x16AWG | 2x7x15/0.12 | 3.3x6.6 | 22 |
| 2x14AWG | 2x7x23/0.12 | 3.8x7.6 | 28 |
| 2x12AWG | 2x7x37/0.12 | 4.4x8.7 | 36 |
| 2x10AWG | 2x7x59/0.12 | 5.2x10.3 | 48 |
Company Introduction
Packing:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
