Pendant Control Cable Rvv2 Series-20*1.5

Hangzhou Nante Machinery Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Polychloreprene( Butadiene-Acrylonitrile R
  • Insulation Material：Special Polychloreprene( Butadiene-Acrylonitrile R
  • Material Shape：Round Wire

Base Info

  • Model NO.：RVV2 20*1.5
  • Certification：ISO9001
  • Brand：Nante
  • Rated Voltage：≤ 1.5mm: 300,500V ≥ 1.5mm: 450,750V
  • Test Voltage：≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
  • Temperature Range：-15ºC to +80ºC
  • Transport Package：Carton
  • Trademark：NANTE
  • Origin：China
  • Production Capacity：100000 Sets Per Year

Description

Basic Info.

Model NO. RVV2 20*1.5 Certification ISO9001 Brand Nante Rated Voltage ≤ 1.5mm: 300/500V ≥ 1.5mm: 450/750V Test Voltage ≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V Temperature Range -15ºC to +80ºC Transport Package Carton Trademark NANTE Origin China Production Capacity 100000 Sets Per Year

Product Description

Applications:
      RVV1/RVV2 Series Pendent Cable with one or two steel wire is special designed
 for pendent control which is tensile resistance and long service life.

Feature:
Sheath: Special Polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame
resistance and self-extinguishing
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special Polychloreprene (Butadiene-Acrylonitrile Rubber) which is Oil
and flame resistance and self-extinguishing

Technical data:
Rated voltage: ≤1.5mm2 300/500V     >1.5mm2:  450V/750V
Test voltage:   ≤1.5mm2 2500V         >1.5mm2:  3000V
Temperature range: -20°C to +80°C

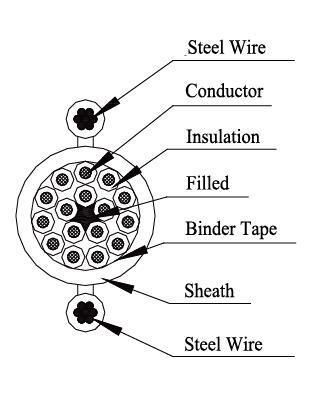

Note: RVV1 is cable with one steel wire and RVV2 is cable with 2 steel wires.

ModelQty of Cores * Section of Cores
mm2		Rated VoltageOuter Dimensionr
(mm)		Weight
(kg/km)
RVV1/RVV24×1.5300/500V14.0 / 18.4193 / 203
RVV1/RVV24×2.5300/500V16.6 / 20.9279 / 326

RVV1/RVV25×1.5300/500V15.0 / 19.3227 / 265
RVV1/RVV25×2.5300/500V17.9 / 22.2331 / 379

RVV1/RVV26×1.5300/500V16.1 / 20.4264 / 303
RVV1/RVV26×2.5300/500V21.4 / 27.9395 / 454

RVV1/RVV28×1.5300/500V19.3 / 25.8346 / 411
RVV1/RVV28×2.5300/500V22.8 / 29.3501 / 578

RVV1/RVV210×0.75300/500V17.5 / 22.9265 / 308
RVV1/RVV210×1.5300/500V21.8 / 28.3444 / 520
RVV1/RVV210×2.5300/500V25.9 / 32.4641 / 736

RVV1/RVV212×0.75300/500V17.9 / 23.3291 / 333
RVV1/RVV212×1.5300/500V22.3 / 28.8491 / 564
RVV1/RVV212×2.5300/500V26.6 / 33.1836 / 810

RVV1/RVV214×0.75300/500V18.6 / 24.0324 / 366
RVV1/RVV214×1.5300/500V23.2 / 29.7549 / 621
RVV1/RVV214×2.5300/500V27.8 / 34.3836 / 925

RVV1/RVV216×0.75300/500V19.3 / 24.8360 / 402
RVV1/RVV216×1.5300/500V24.2 / 30.7611 / 684
RVV1/RVV216×2.5300/500V29.1 / 35.6934 / 1025

RVV1/RVV218×0.75300/500V21.2 / 27.7418 / 481
RVV1/RVV218×1.5300/500V25.2 / 31.7676 / 749
RVV1/RVV218×2.5300/500V30.5 / 37.01038 / 1130

RVV1/RVV220×0.75300/500V21.6 / 28.1446 / 508
RVV1/RVV220×1.5300/500V25.8 / 32.3725 / 796
RVV1/RVV220×2.5300/500V31.2 / 37.71115 / 1203
