The armour provides additional protection where mechanical stress has the potential to cause damage to the cable, such as direct burial, outdoors or underground. The armour also enables the cable to withstand higher pulling loads. It should be noted, however, that the armour provides no protection for climatic conditions.

The construction of our various types of armoured cable (US spelling armored cable) differs according to their intended application and may also include protective screens and materials suited specifically to the installation conditions. We offer a comprehensive range of BASEC-approved armoured cables, manufactured in accordance with a number of British, European and International standards including BS5467, BS6622, BS6724, BS7835, BS EN 50267, IEC 60502 and BS EN 60332-1-2 (for single core cables).

Hongda Cables' range of armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheathing, LSZH sheathings are recommended for use in high density enclosed areas, and are mandatory in some public places.

CHARACTERISTICS
Voltage Rating (Uo/U) 600/1000V
Temperature Rating Fixed: -25°C to +90°C
Minimum Bending Radius 1.5mm2 to 16mm2 - Fixed: 6 x overall diameter 25mm2 and above - Fixed: 8 x overall diameter
Core Identification
2 core: Brown Blue
3 core: Brown Black Grey
4 core: Brown Blue Black Grey
5 core: Green/Yellow Brown Blue Black Grey
Alternative Core Identification: White cores with Black numbers Sheath Colour Black

^{Packaging&Delivery.}

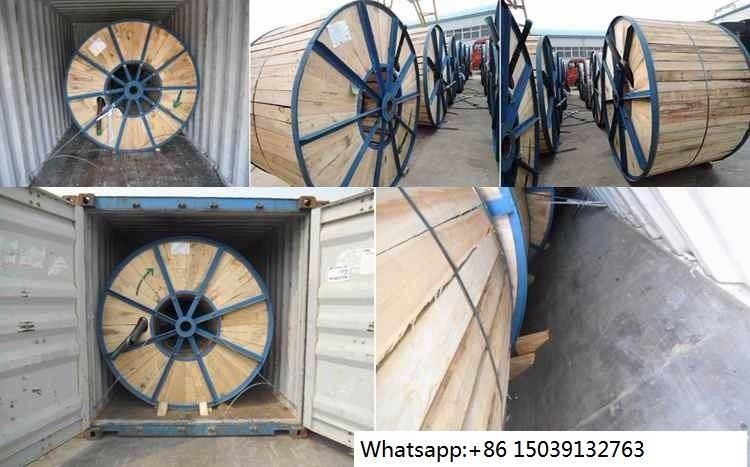

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 30 days(detailly depend on the order quantity)
