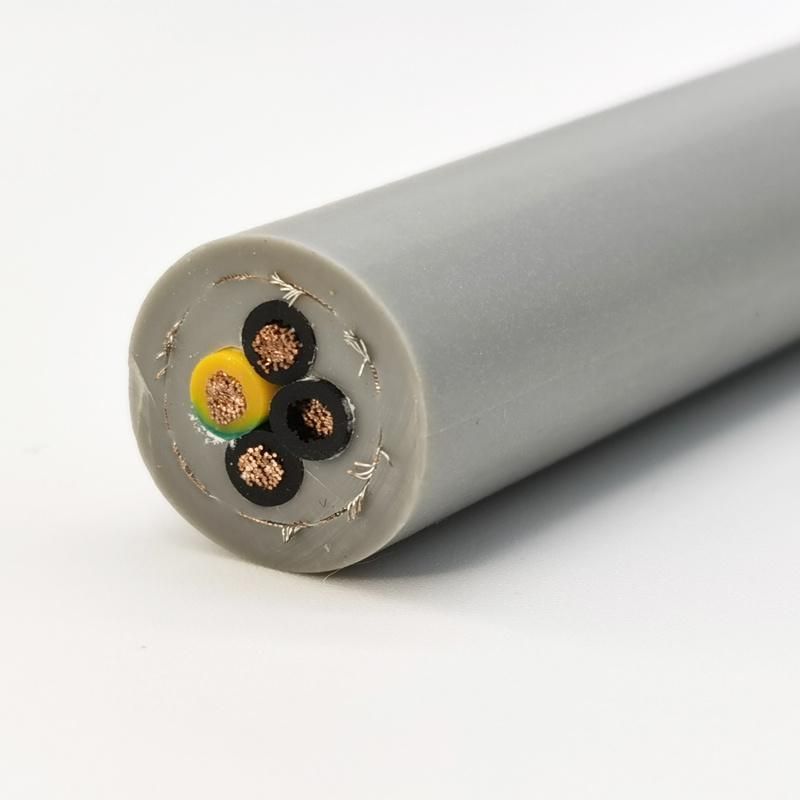

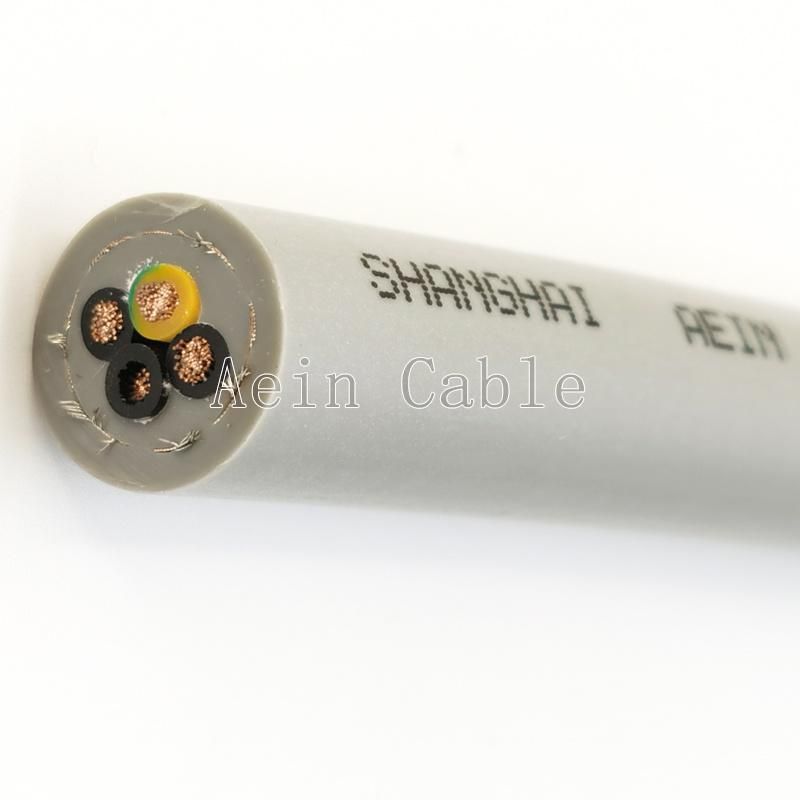

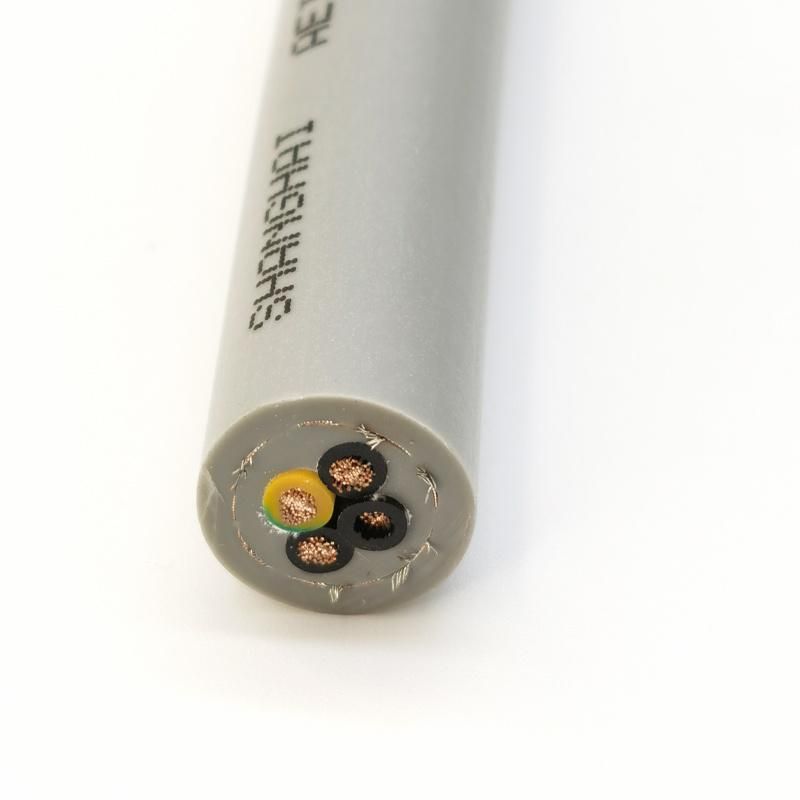

Helukable Alternative (N) Yslycyo-Jz Cable 300/500V PVC Control Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：(N)YSLYCYO-JZ Cable
  • Range of Application：Oil-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHELUKABLE Alternative  300/500V PVC Control CableConductorBare copperInsulationSpecial PVCInner SheathSpecial PVCScreenTinned copper braidedOuter SheathSpecial PVCRated Voltage300/500VTest VoltageCore/core 2 kV, 5 min
Core/screen 2 kV, 5 minTemperature RangeFlexing -5°C to +70°C
Fixed installation -40°C to +70°CMinimum bending radiusFlexing 10x cable Ø
Fixed installation 5x cable ØColorOptionalApplicationThese cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry , moist and wet rooms but not suitable for open air. These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines.
These cables are not effected to the chemical infuences. Cables for moist and wet rooms, specially used for machines in breweries,bottling plants and car washing stations.
These cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement.
The interconnection of parts of machines used for manufacturing purposes including machine tools where some degree of protection against electromagnetic interference is required.
