CAT6 Network Cable for Communication and Signal Control Systems
Nantong Hwatek Wires and Cable Co., Ltd.- Application：Communication Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：UL444
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Cat 6
- Brand：Hwatek
- Transport Package：Rolled in Reels, Packed in Pallets.
- Specification：UL444
- Trademark：Hwatek
- Origin：China
- HS Code：8544492100
- Production Capacity：20km,Day
Description
Construction No.of PairsShield Braid Shield Jacket NO./mm Material Material No./No./mm Nom. Dia.
mm HT-CAT6-UTP001 1/0.57 1.02 UTP 4 - - 6.00 HT-CAT6-FTP001 1/0.57 1.00 FTP 4 AL-Mylar - 6.30 HT-CAT6-SUTP001 1/0.57 1.00 S-UTP 4 AL-Mylar 16/6/0.10 6.50 HT-CAT6-SFTP001 1/0.57 1.05 S-FTP 4 AL-Mylar 16/6/0.10 6.70
Electrical Characteristics:
Company Profiles:

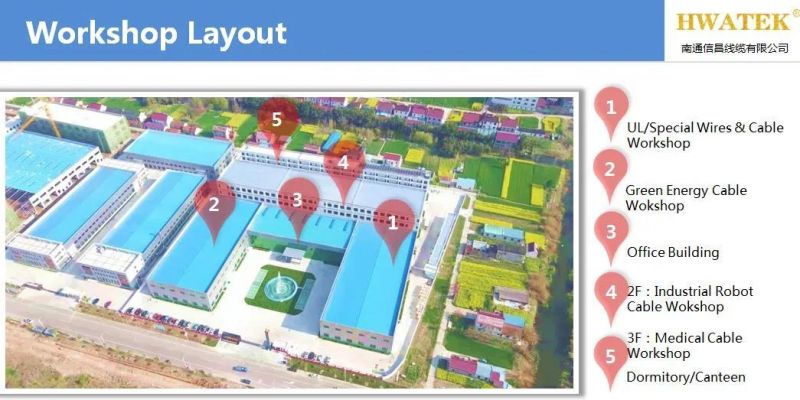

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.

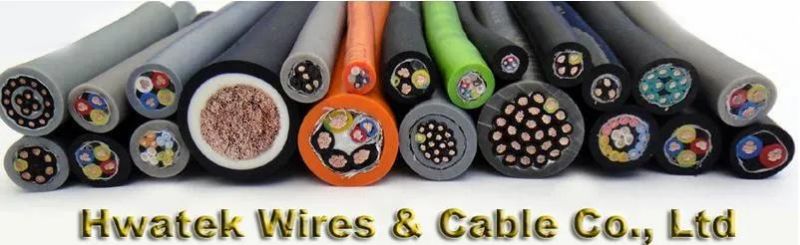

We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA ,TUV,DEKRA,IEC,CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.
Frequently Asked Question:
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
mm
Electrical Characteristics:
| Frequency MHz | Impedance | RL dB | Attenuation dB/100m | Next dB | PsNext dB | ElFext dB | PsElFext dB |
| 0.772 | 100±15 | 19.4 | 1.80 | 76 | 74 | 70 | 67 |
| 1 | 100±15 | 20 | 2.04 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 100±15 | 23 | 4.05 | 65.3 | 63.3 | 55.8 | 52.8 |
| 8 | 100±15 | 24.5 | 5.40 | 60.8 | 58.8 | 49.7 | 46.7 |
| 10 | 100±15 | 25 | 6.00 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 100±15 | 25 | 7.7 | 56.3 | 54.2 | 43.7 | 40.7 |
| 20 | 100±15 | 25 | 8.6 | 54.8 | 52.8 | 41.7 | 38.7 |
| 25 | 100±15 | 24.3 | 9.6 | 53.3 | 51.3 | 39.8 | 36.8 |
| 31.25 | 100±15 | 23.3 | 10.8 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 100±15 | 20.7 | 15.7 | 47.4 | 45.4 | 31.8 | 28.8 |
| 100 | 100±15 | 19 | 20.2 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 100±22 | 16.4 | 29.8 | 39.8 | 37.8 | 21.7 | 18.8 |
| 250 | 100±22 | 15.5 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 |
