Nyy H07rn-F Fa-Dpyc Fr-Mpycs 3 Cores 2.5mm Marine Cable Aluminium Control Electric Coaxial Waterproof Rubber Cable Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：FA-DPYC FR-MPYCS
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yz,Yzw,Yc,Ycw
- Brand：Fengda
- OEM&ODM：Yes
- Conductor Standard：IEC 60228
- Colors：Assorted Upon Request
- Coductor：Tinned Annealed Stranded Copper
- Model Number：1,2,3cores
- Armor：Galvanized Steel Wire Braid
- Cabling：Insulated Conductors Shall Be Cabled
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：Copper
- Trademark：Fengda
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description

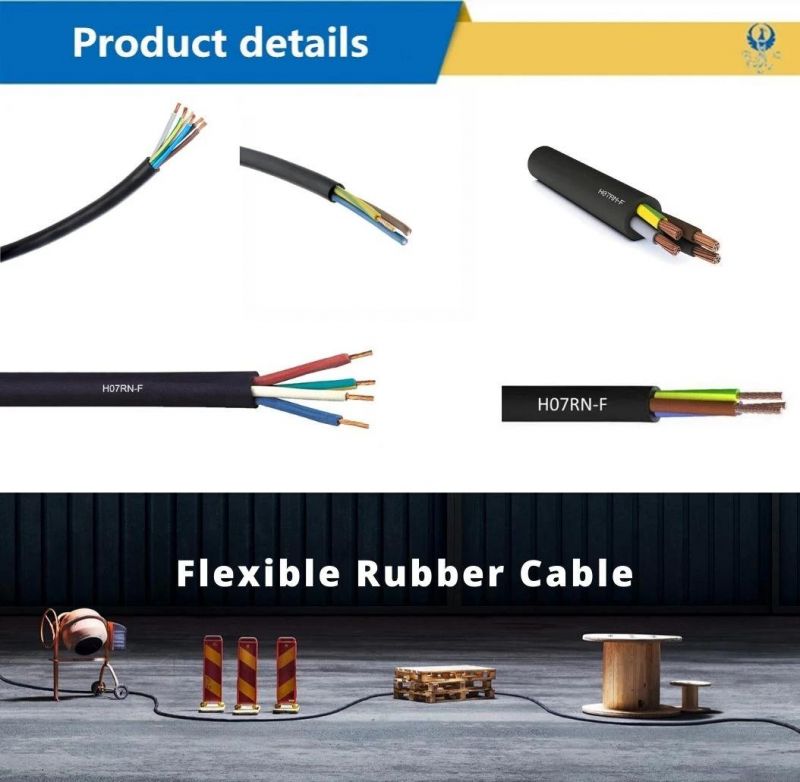

H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
H07RN-F Cable Technical Data:
- Nominal Voltage: Uo/U 450/750 volts
- Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
- Min. Bending Radius: 15 x O.D.
