Nyy H07rn-F 3 Core*0.75 Square Silica Gel High Temperature Cable Ygc High Temperature Resistant Silicone Super Soft Wires Control Wire Electric Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Industrial
- Voltage：450,750V
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Ygc
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Ygc
- Brand：Feiya
- OEM：Yes
- Temperature Range：-60 C~+200 C
- Colour：White-Blue-Red-Black-Brown-Yellow-Green-Transpanre
- Brand Name：Fengda
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description

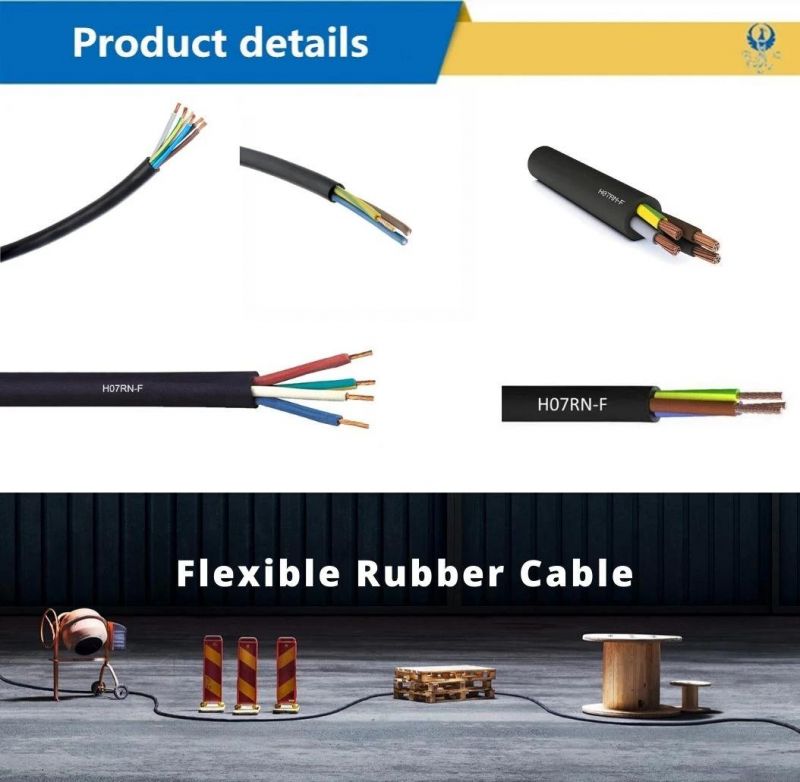

H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
H07RN-F Cable Technical Data:
- Nominal Voltage: Uo/U 450/750 volts
- Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
- Min. Bending Radius: 15 x O.D.
